IR-X1

Fast drying times.
Unbeatable price-performance ratio.

Shortwave infrared dryer with one cassette for drying small areas.

Request now
IR-X1
siegel

IR-X1

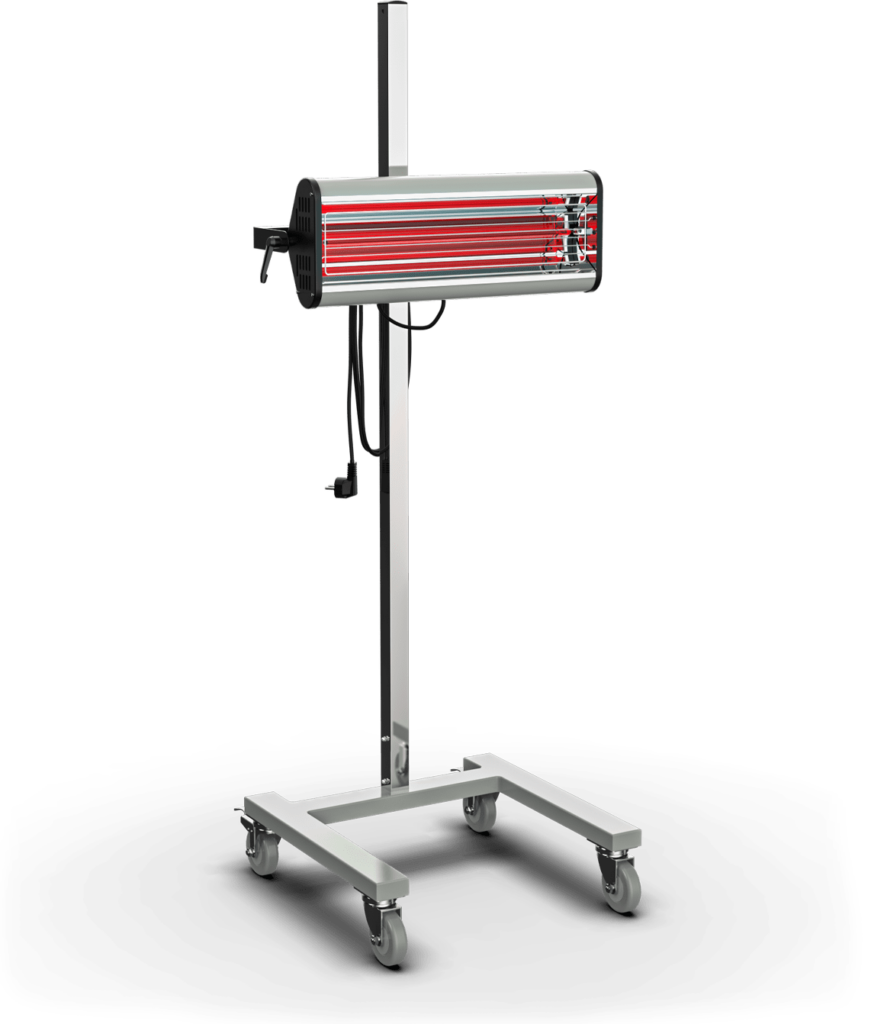

The mobile, short-wave infrared dryer IR-X1 convinces with fast drying times and an outstanding price-performance ratio.
Equipped with a timer, the dryers offer the highest quality in its price segment.

Unlike medium- or long-wave infrared radiation, short-wave infrared radiation penetrates the coating and thus heats it from the inside out. Complete sealing of the paint surface with wet paint layers still underneath is effectively prevented.
This leads to a perfect drying result and prevents painting problems such as such as “boiling” and “biting”.

drying area:
approx. 600 x 400 mm

IR-X1

Gallery

Highlights

  • Shortest drying times
  • Works with 230 V, 1.020 watt
  • Timer switch
  • Easy to manoeuvre due to castors
  • Curing area: approx. 600 x 400 mm
  • Option: protective cover

3D view



Technical data

IR-X1

Chassis dimensions
(width × height × depth)

700 × 1.550 × 580 mm

Adjustable height

150 - 1.600 mm

Number of emitters

1

Input current

10 A

Input voltage

230 V
