M-1200-G
Maximum user protection for manual parts cleaning

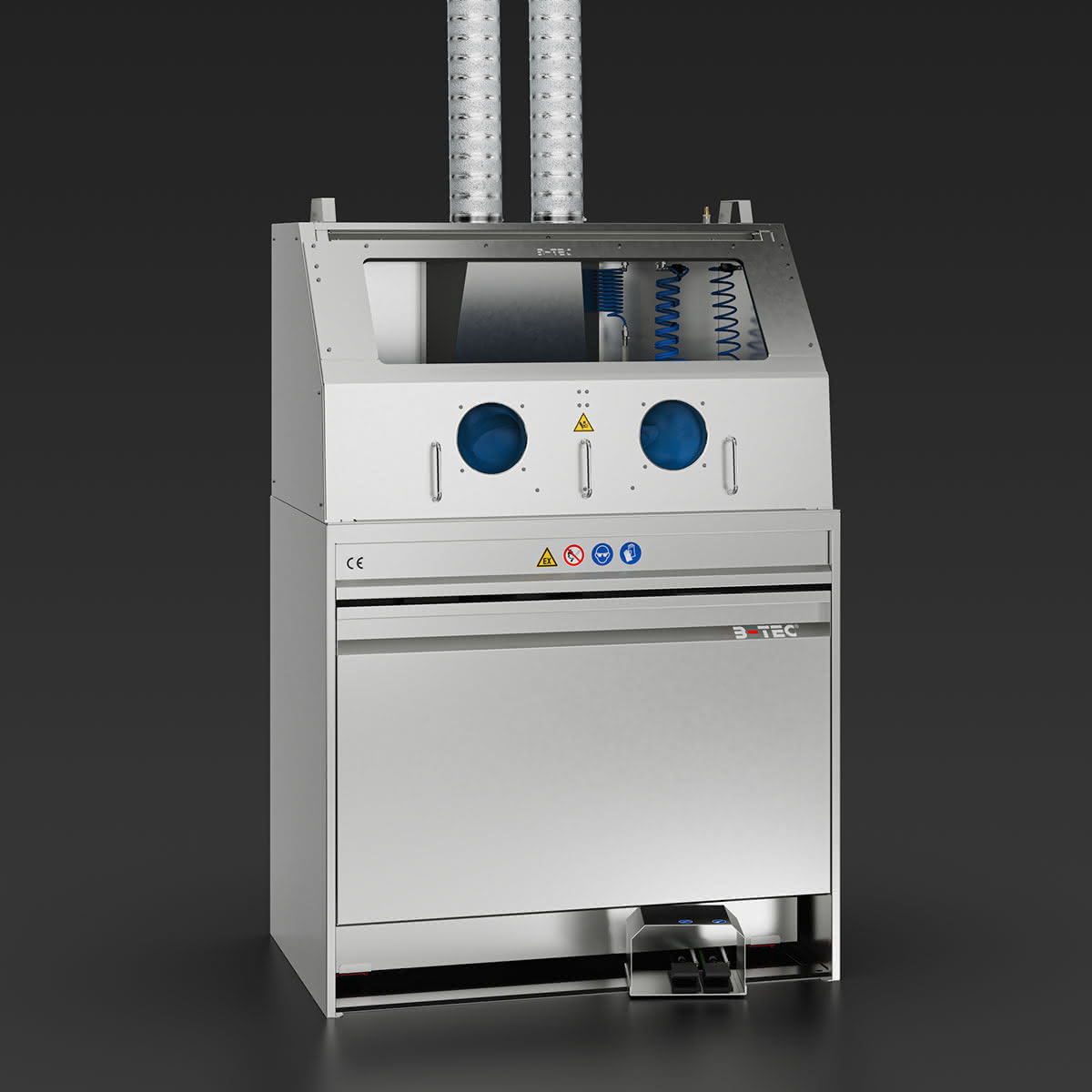

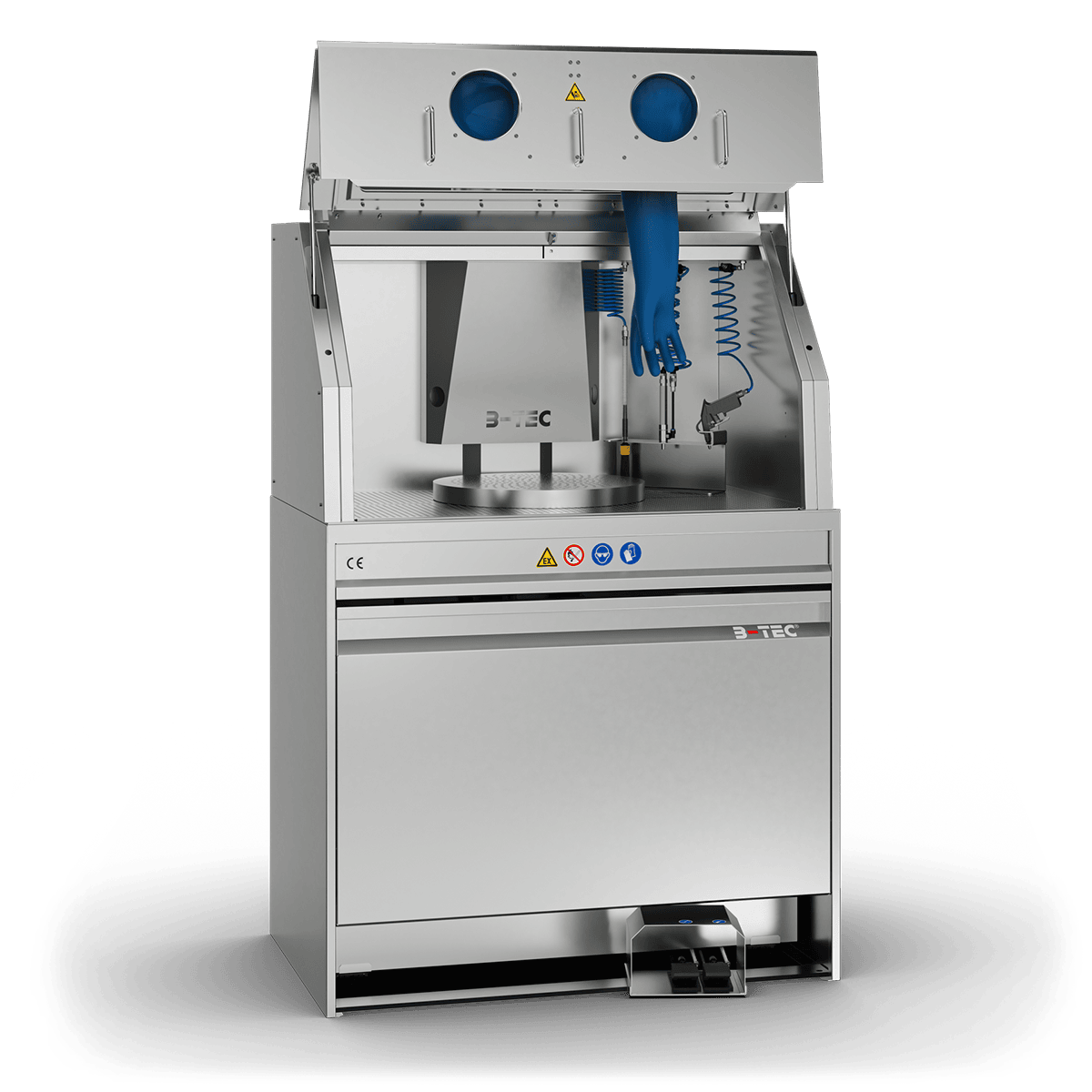

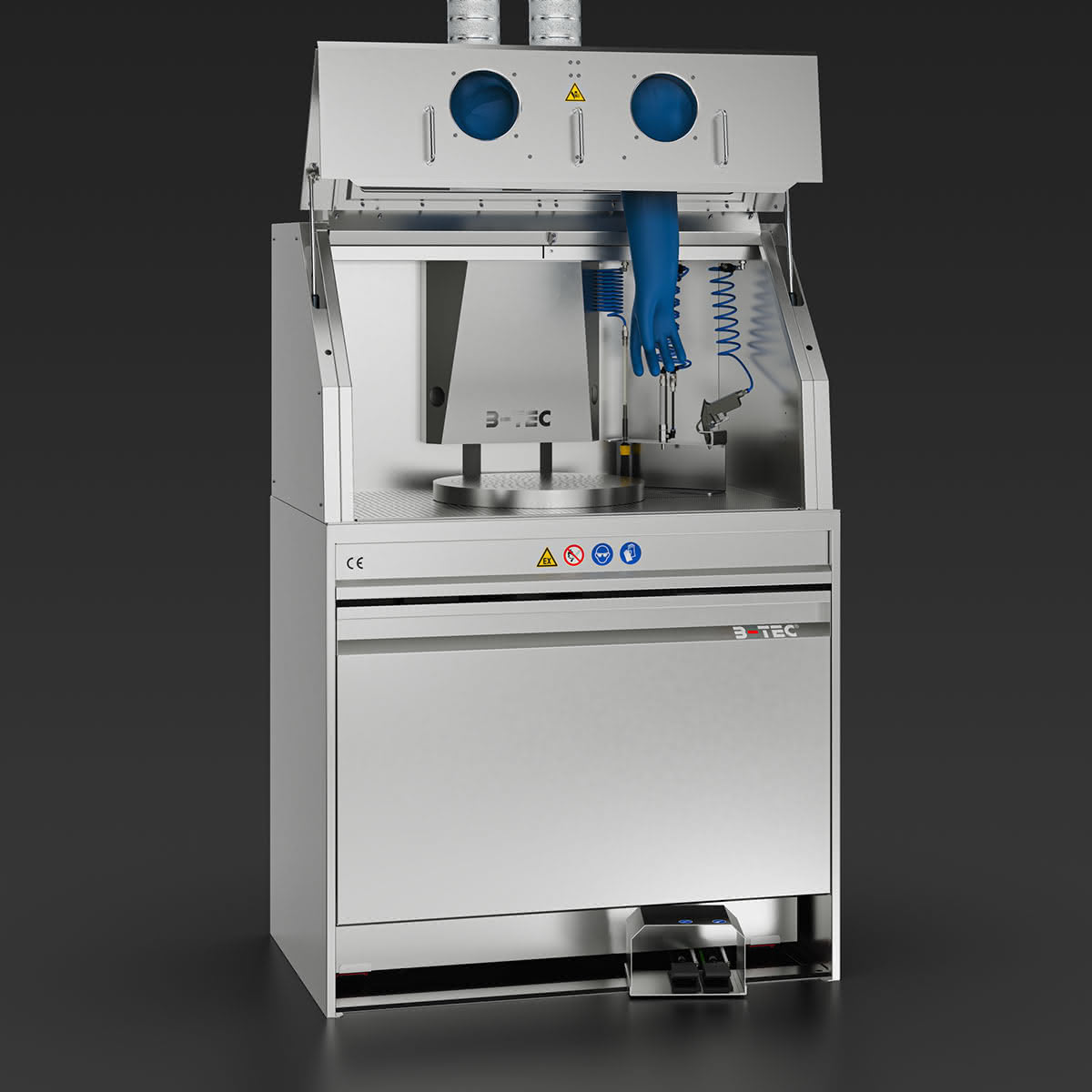

The large-capacity manual washing device for parts cleaning with glove portals.
M-1200-G
With the ATEX-compliant M-1200-G, cleaning components with highly flammable liquids (category 2, Flam. Liq. 2) has never been safer.

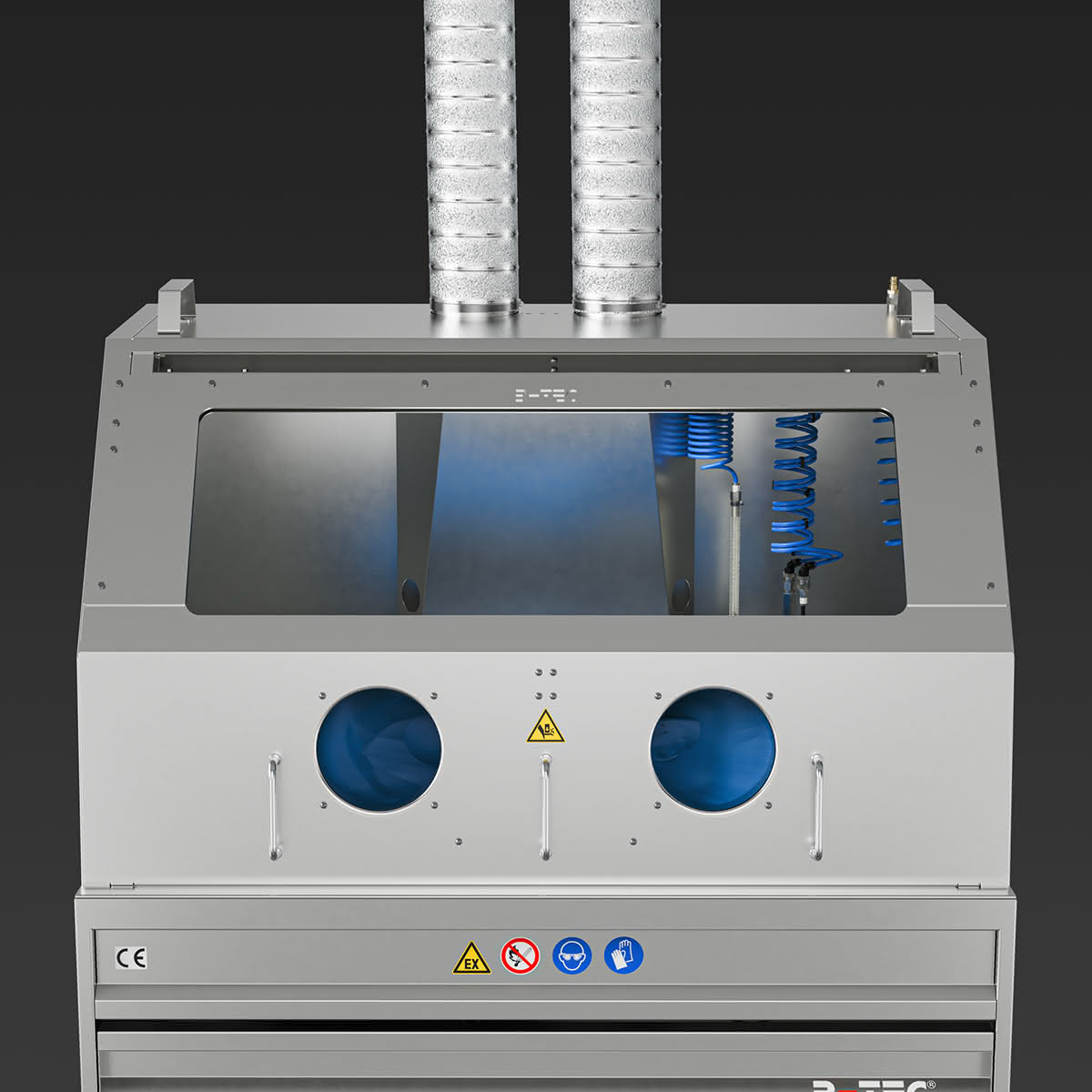

With integrated glove access, the device reliably protects the user from direct contact with hazardous cleaning agents during manual cleaning. Thanks to its ATEX conformity, the appliance can also be used in potentially explosive areas (zone 1) without any problems.

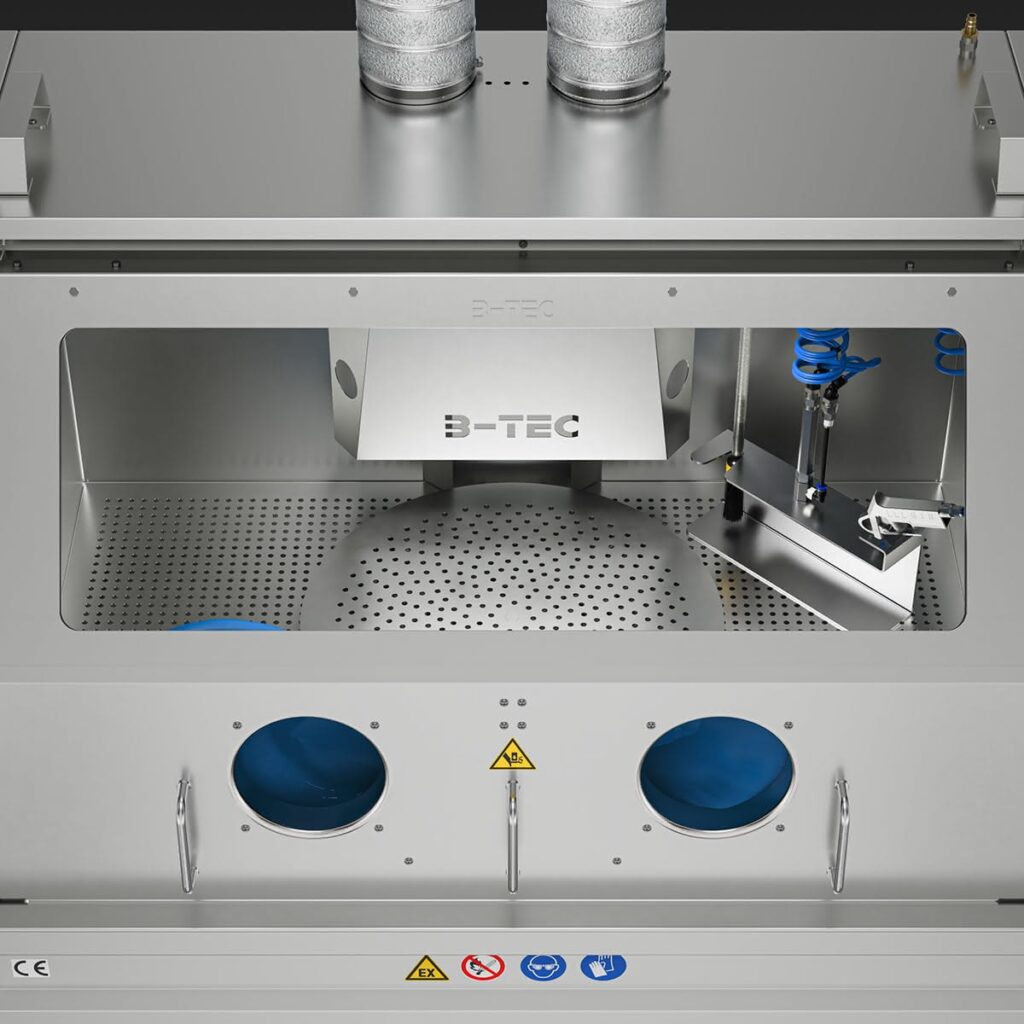

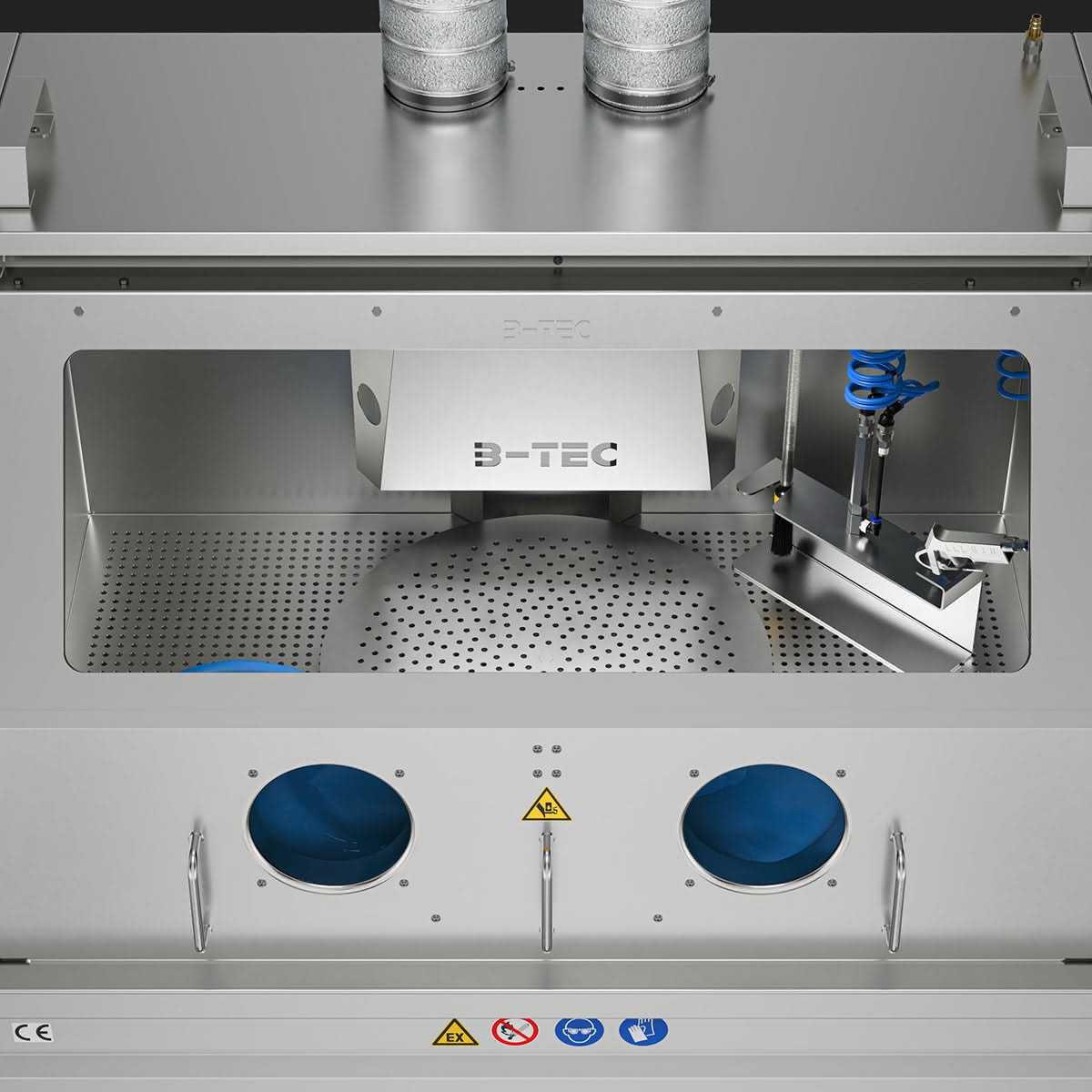

For optimum visibility and control during cleaning, the appliance is equipped with a large viewing window made of laminated safety glass. The removable, rotatable parts holder allows particularly convenient cleaning of workpieces up to 500 mm (without parts holder up to 1200 mm), whereby the integrated throughfeed brush with adjustable flow rate can be specifically adapted to the respective requirements.
The system is complemented by a flexibly adjustable fresh rinse nozzle and a blow-out and blow-off gun for effective drying of the cleaned parts in the appliance. Whether for intensive continuous use or regular workshop use, the appliance impresses with its sophisticated ergonomics, easy handling and maximum safety.
Maximum safety. Precise cleaning.
GALERIE
Highlights
- Large work surface for cleaning parts up to 1200 mm
- ATEX-compliant
- Possible cleaning liquids:
- Highly flammable liquids (Category 2, Flam. Liq. 2): GHS/CLP regulation H-phrase H225, flash point 35°C
- Flammable liquids (Category 3, Flam. Liq. 3): GHS/CLP Regulation H-phrase H226, flash point 23°C – 60°C
- Non-flammable, aqueous cleaning media (pH-neutral or slightly alkaline pH value) for water-soluble paints and varnishes, e.g. B-TEC water-based paint cleaner (B-TEC H2O-Cleaner-RK)
- VOC-reduced cleaner for solvent-based paints: B-TEC E2C – Easy 2 Clean
- Glove grip with tray for gloves to prevent liquid from dripping off the gloves
- Large LSG viewing window for the best possible visibility in the washroom

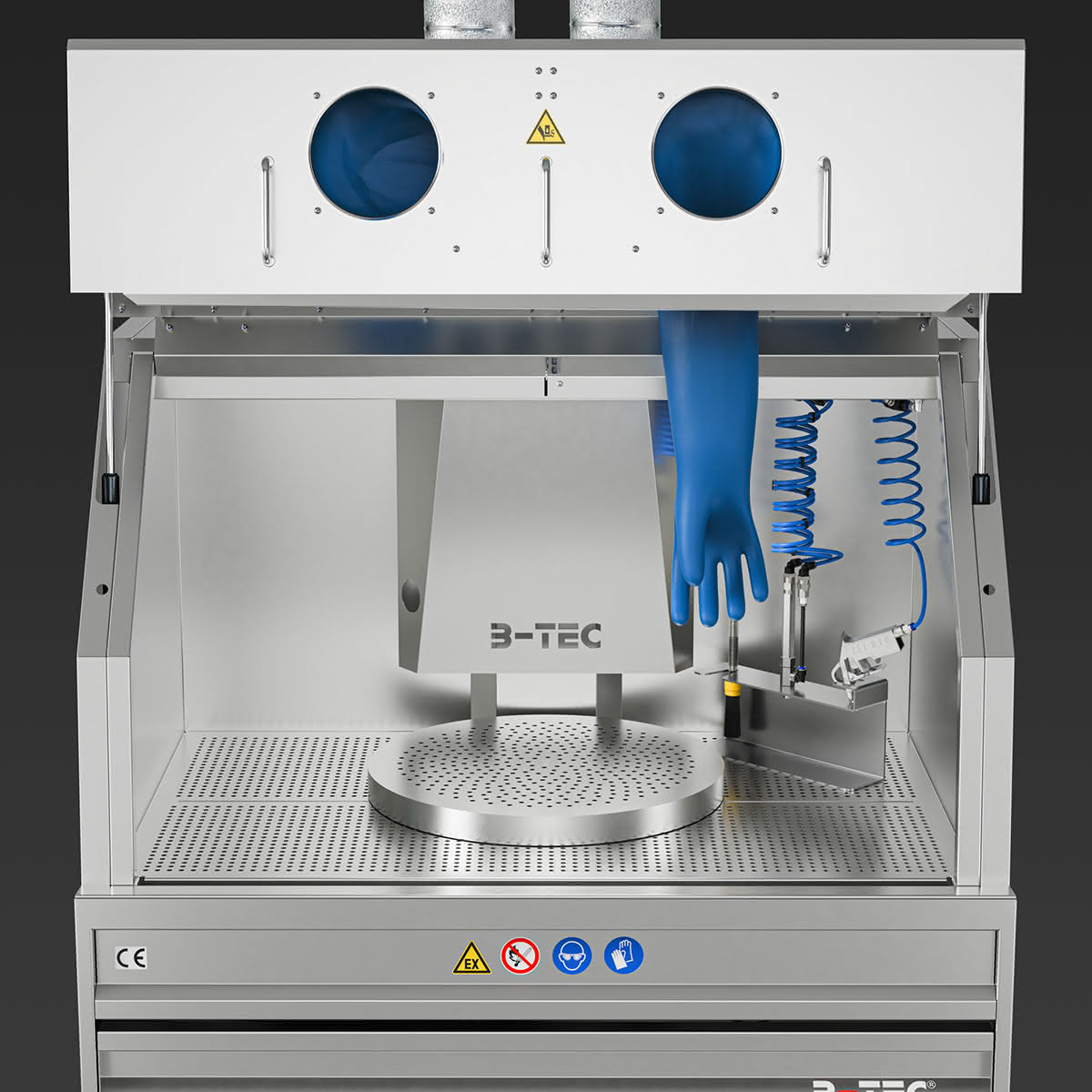

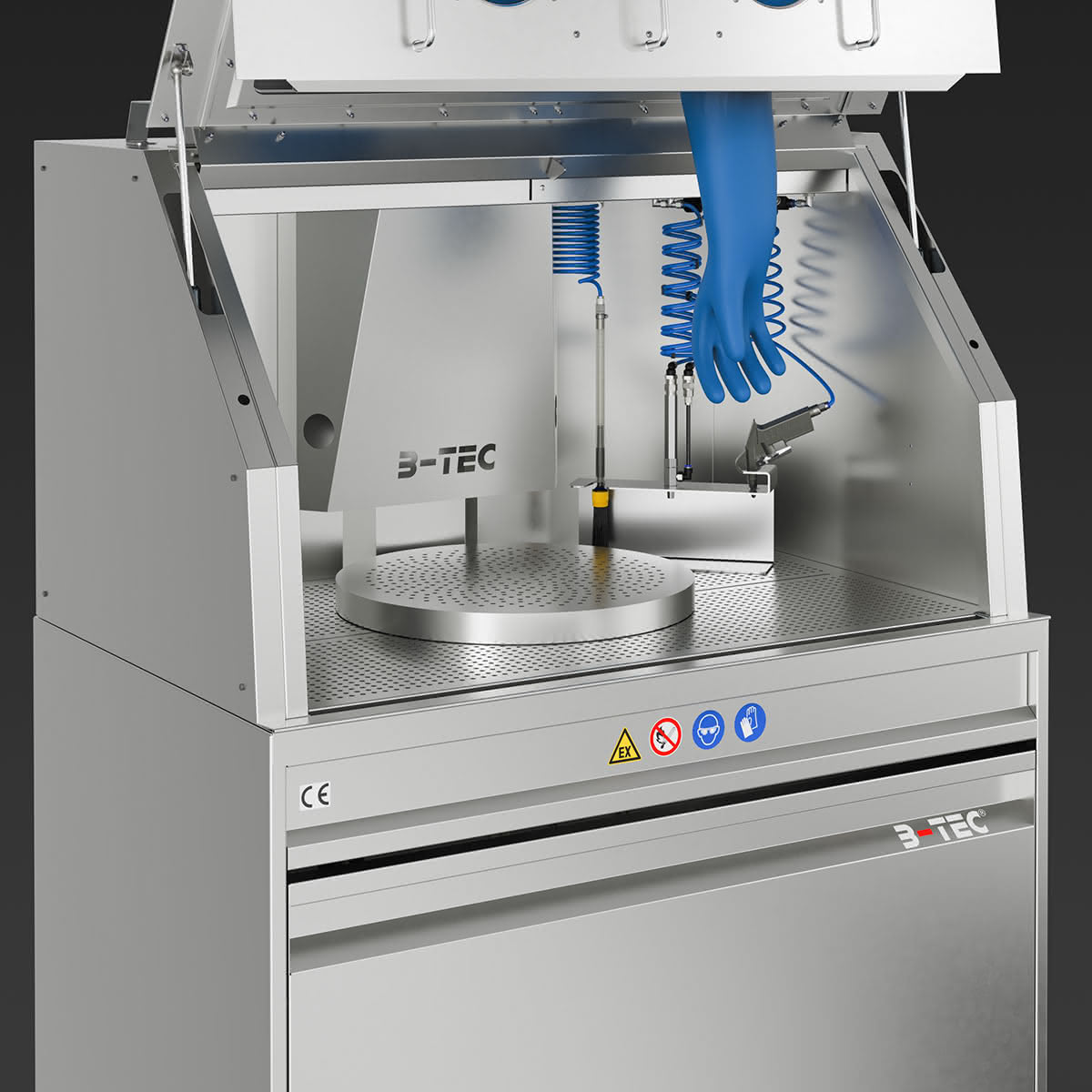

- Removable, rotatable parts holder for easy cleaning of parts up to 500 mm
- Foot pedal operation
- Pass-through brush with adjustable flow rate
- Adjustable, movable fresh rinse nozzle
- Blow-out and blow-off gun for drying the cleaned parts
- Practical, movable tool holder
- Efficient extraction of solvent vapors
- Low solvent consumption
- For solvents, B-TEC E2C or B-TEC H2O cleaner
- Mobile drip tray
- All functions adjustable
- Housing made entirely of stainless steel
- Optional: Pneumatic exhaust solvent saver in ATEX version
PRODUCT ADVANTAGES
ERGONoMIc DESIGN
The ergonomic design with comfortable front access enables optimal viewing conditions on all features of the washer – without glass plates or bezels which prevent good visibility. Ergonomic and fast cleaner change due to moveable collection trays / bunds.
No laborious removing of any frames or anything similar necessary.
B-TEC H2O CLEANERS
Can be used with B-TEC-H2O-Cleaners.
STAINLESS STEEL
Bright cleaning chambers due to the utilization of stainless steel. No utilization of light absorbing plastic.
ADJUSTMENT Options
All features fully adjustable.
Kalrez Diaphragm
With the Kalrez diaphragm our pump is resistant against 1800 different chemicals. Made of corrosion-resistant material, it withstands toughest working conditions in the long term – without a maintenance
requirement.
suitable for solvents
Can be used with solvent and B-TEC E2C.
3D View
Technical data
Gerätemaße
(Breite × Höhe × Tiefe)
1.180 × 1.720/2.140* × 750 mm
(*Geräteklappe geöffnet)
Maße Waschraum
(Breite × Höhe × Tiefe)
1.180 × 560 × 700 mm
Material
Edelstahl
Vorratsbehältergröße unter dem Waschgerät
1 x Behälter für Umlaufmedium
Behältergröße max. 60 L
1 x Behälter für Frischmedium
Behältergröße max. 30 L
Betriebsdruck
max. 6 bar
