IR-B02-Evolution

Highest drying power, compact dimensions

Short wave infrared dryer with 3 gold metallised emitters and reflectors also for drying larger areas.

Request now
IR-B02-Evolution
siegel

IR-B02-Evolution

The IR-B02-Evolution combines the outstanding drying performance of the B-TEC IR-B03-Evolution with the compact dimensions of the B-TEC IR-B02. The three gold-metallised emitters and reflectors allow a drying area of up to 1000×1100 mm with excellent heat distribution. The Spot-Repair-Feature allows the activation of only one emitter for best possible energy efficiency also with small drying areas.

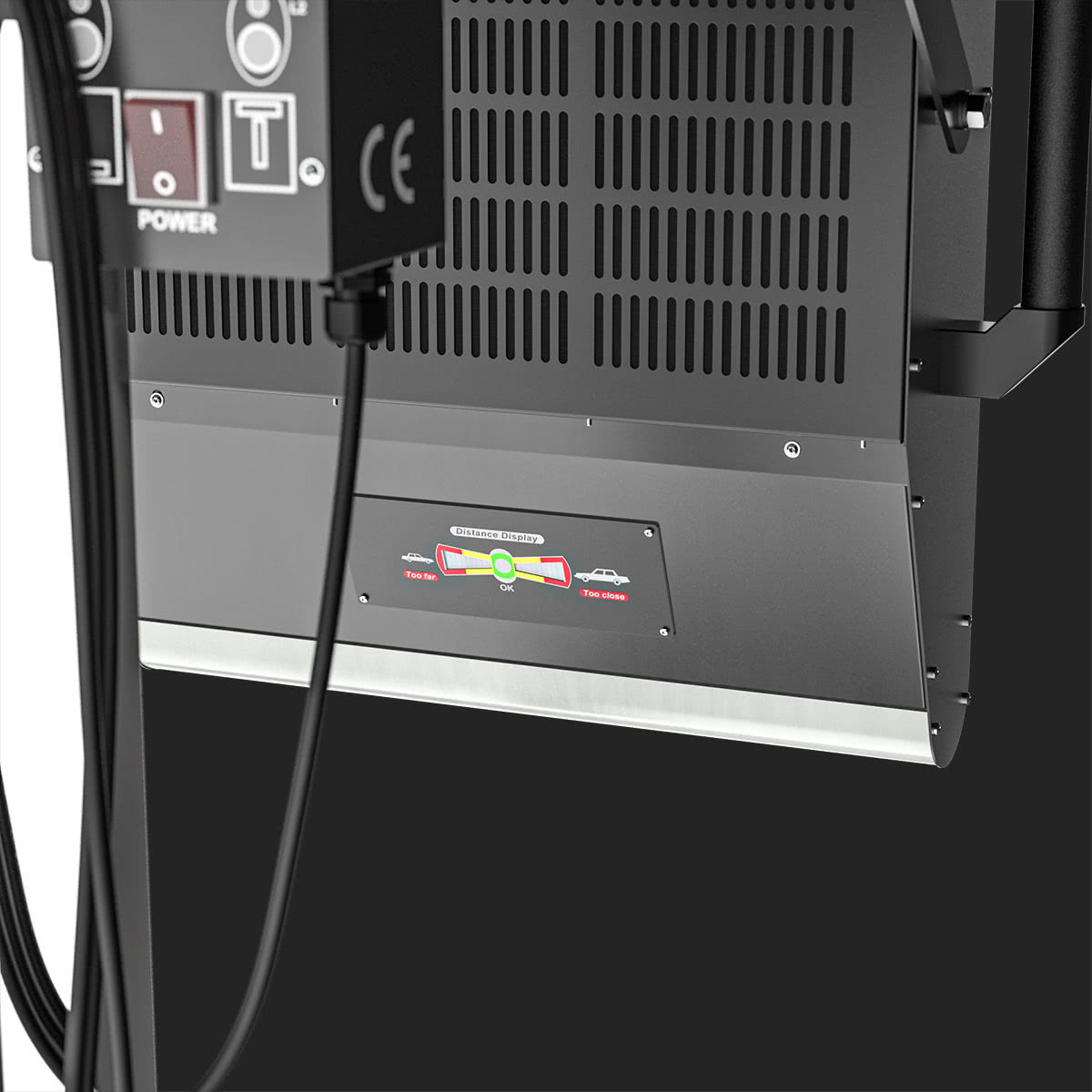

In addition, the IR-B02-Evolution is equipped with a permanent and automatic ultrasonic distance sensor to monitor the perfect distance to the object at all times.

Double swivel castors also allow easy manoeuvring even over gratings.

Like all B-TEC IR dryers (except for IR-X), the IR-B02-Evolution also features 2-stage drying (flashlight / continuous drying) to heat the paint gently from the inside to the outside, thus preventing painting problems such as “boiling” and “biting”.

Unlike medium- or long-wave infrared radiation, short-wave infrared radiation penetrates the coating and thus heats it from the inside out. Complete sealing of the paint surface with wet paint layers still underneath is effectively prevented.

Spot repair feature

IR-B02-Evolution
IR-B02-Evolution

GALLERY

Highlights

  • 3 gold metallized emitters and reflectors
  • shortest drying times
  • energy saving 230 V, 3.000 Watts
  • 10 m power cable – high flexibility
  • spot-repair feature – with only one emitter switched on
  • automatic distance control using ultrasonics
  • two-stage drying (Flashlight / Continuous)
  • drying area: approx. 1000 x 1100 mm
  • Option: Protection cover

3D View



Technical data

IR-B02-Evolution

Chassis dimensions
(width × height × depth)

520 x 1.550 x 580 mm

Adjustable height

150 - 1.800 mm

Number of emitters

3

Input current

13 A

Input voltage

230 V - 50/60 Hz (1PH)

Show more
