Carry XL-S/-EB

Size does matter after all!

Pneumatic lift for lifting vehicles standing on wheels with 3.5 tonnes lifting capacity – surface mounted or as in-ground version.

Request now
Carry-XL-S
siegel
siegel

Carry XL-S/-EB

The B-TEC Carry XL is the largest pneumatic vehicle lift with a lifting capacity of 3.5 tonnes and a width of 2.20 metres. Even with a BMW X7 with a vehicle width of 2.00 metres, driving onto the lift is child’s play.

With the Carry XL we follow the trend of even longer, wider and heavier vehicles and have developed a platform that meets the new demands, also with regard to e-vehicles with their central and heavy battery.

The width without mirrors of current vehicles like a Golf VIII is now ~1.80m. A BMW X3 is ~1.90m wide and a BMW X7 even 2.00m.

The XL lifts are therefore the new standard with a width of 2.20m.

In comparison to hydraulic lifts in the car workshop, our pneumatic lifts work completely without oil or other paint destroying substances – a must-have in the paint refinish and body work sector.

surface mounted (Carry XL-S) or in-ground version (Carry XL-EB).

GALLERY

Highlights

  • 3.5 tonnes lifting capacity
  • provides a better ergonomic working height and therefore improves the work quality
  • enables a working height of up to 1.280 mm
  • double safety feature with protected fall-safeguard

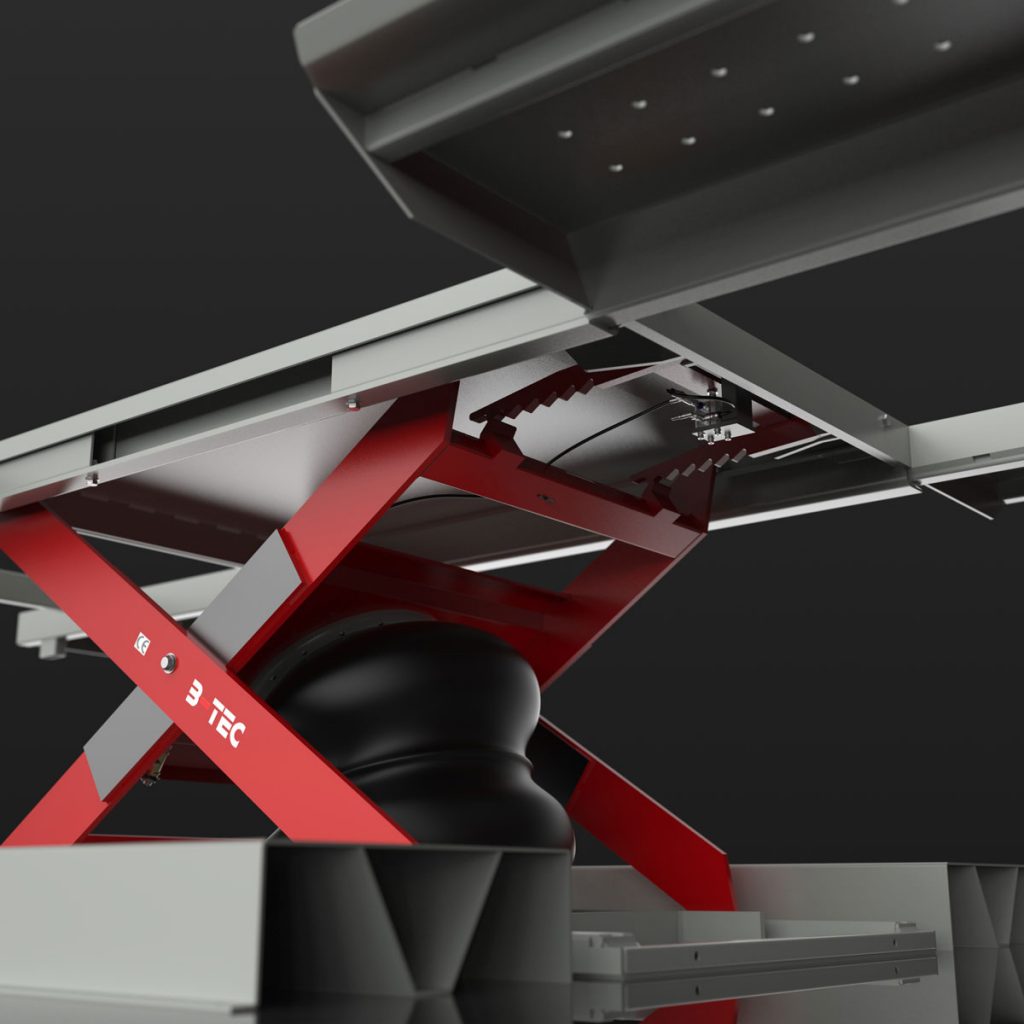

  • air bellows installed below the scissor – hence almost flat upper surface
  • high-quality one piece air bellows
  • practical holes inside the outriggers enable water and snow to drain away
  • length and width for small up to long wheelbase vehicles
  • surface mounted version (Carry XL-S) or in-ground version (Carry XL-EB)
  • weight: 998 kg (Carry XL-S), 953 kg (Carry XL-EB)
  • Option: Part or full zinc spraying of the lift

3D View

Technical data

Carry XL-S/-EB

Lifting capacity standing on wheels

3.500 kg

Effective stroke

790 mm

Overall height min.

Carry XL-S: 160 mm
Carry XL-EB: 0 mm

Overall height max.

Carry XL-S: 950 mm
Carry XL-EB: 790 mm

Working height

Carry XL-S: approx. 1.280 mm
Carry XL-EB: approx. 1.120 mm
