M-1200-1/-2

Manual cleaning of parts up to
1200 mm.

The manual large capacity washer for one (M-1200-1) or two users (M-1200-2).

Request now
siegel
siegel

M-1200-1/-2

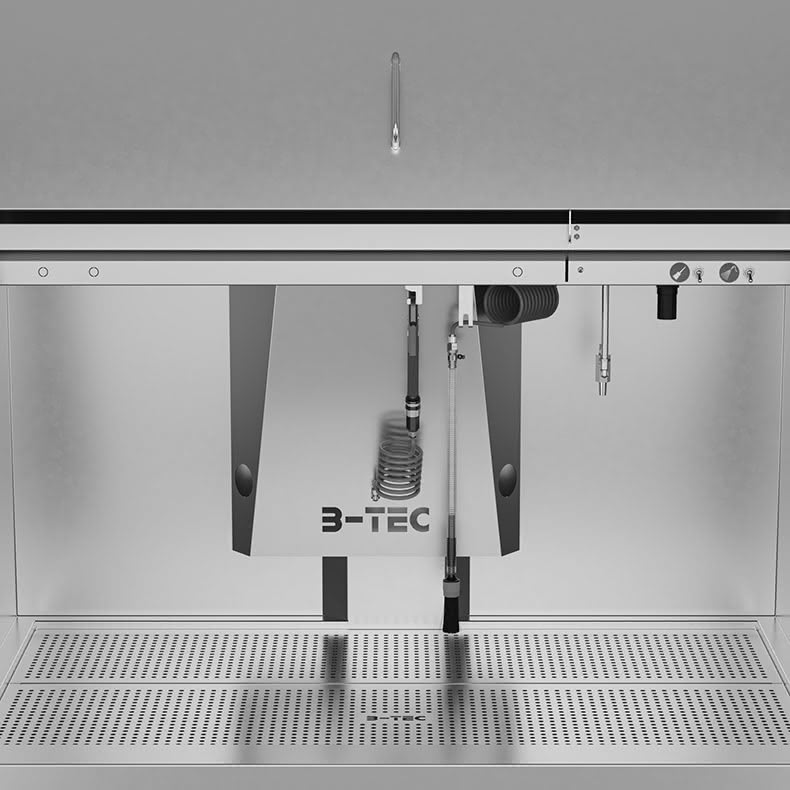

The manual large capacity washer M-1200 as part of our Industry-Line, is designed for the hardest work under industrial conditions.
With a width of 1210 mm, it enables convenient, ergonomic cleaning of parts up to 1200 mm and effectively protects the user from solvent vapours with the powerful B-TEC air extraction system.

Completely made of stainless steel and optionally equipped with one (M-1200-1) or two (M-1200-2 for two users at the same time) adjustable flow-through brushes and fresh rinse nozzles, the unit is perfectly equipped to withstand daily use.

As part of the B-TEC 1200 modular design of our Industry Line, it can also be easily combined with other units such as the K-1200 or T-1200.

Efficient and effective air extraction.

GALLERY

Highlights

  • The large work space enables cleaning of parts up to 1200 mm length
  • all features fully adjustable

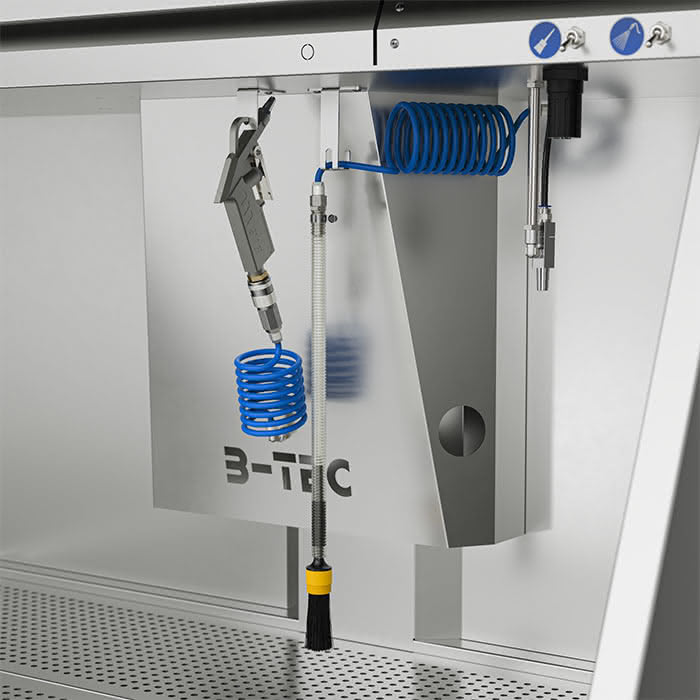

  • pump driven flow-through brush with recirculating fluid
  • manual clean rinse with fresh fluid
  • efficient exhaust air system
  • low solvent consumption
  • for solvents, B-TEC E2C or B-TEC-H2O-Cleaners
  • M-1200-2 – two brushes and two manual frsh rinses for two users at the same time
  • Options: stainless steel flap with automatic air exhaust activation (pretends dust ingress); Pneumatic exhaust solvent saver, ATEX-Version

PRODUCT ADVANTAGES

ERGONoMIc DESIGN

The ergonmic design with comfortable front access enables optimal viewing conditions on all features of the washer – without glass plates or bezels which prevent good visibility. Ergonomic and fast cleaner change due to moveable collection trays / bunds.

No laborious removing of any frames or anything similar necessary.

B-TEC H2O CLEANERS

Can be used with B-TEC-H2O-Cleaners.

STAINLESS STEEL

Bright cleaning chambers due to the utilization of stainless steel. No utilization of light absorbing plastic.

ADJUSTMENT Options

​All features fully adjustable.

Kalrez Diaphragm

With the Kalrez diaphragm our pump is resistant against 1800 different chemicals. Made of corrosion-resistant material, it withstands toughest working conditions in the long term – without a maintenance
requirement.

suitable for solvents

​​​Can be used with solvent and B-TEC E2C.

3D View



Technical data

M-1200-1/-2

Unit dimensions
(width × height × depth)

1.210 x 1.850 x 700 mm

Cleaning area dimensions
(width × height × depth)

1.200 x 555 x 650 mm

Material

stainless steel

Type of paint

water-based or solvent-based paint

Number of pumps

M-1200-1: one pump

M-1200-2: two pumps
