K-1200

Large. Strong. Innovative.

Paint spray gun washer combination with automatic and manual cleaning area – cleaning performance awarded the German Federal Prize for outstanding innovative achievements for the craft.

Request now
siegel
siegel
siegel
siegel
siegel

K-1200

The K-1200 is the perfect spray gun cleaning platform for industrial users. Made completely of stainless steel, the washer convinces with two large, separate cleaning areas for automatic spray gun cleaning and manual cleaning even of larger parts.

As part of the B-TEC 1200 modular design of our Industry Line, it can also be easily combined with other units such as the T-1200 or M-1200.

With the help of the B-TEC air flow system, the air channels are perfectly protected during automatic cleaning and contamination behind the air cap is prevented. The air cap does not need to be removed – less mechanical damage to paint and spray guns and high time savings.
The manual cleaning area offers plenty of space, a pump-operated, pressure-adjustable brush, a fresh rinse nozzle for final cleaning and a blow-off gun for drying.

As the world’s first paint spray gun washer with ergonomic front access, the K-1200 was awarded the German Federal Prize for outstanding innovative achievements for the craft and, thanks to its generous dimensions, offers an excellent basis for individual customer requirements. Examples of customer projects already realised can be found in our Custom Designs section.

Please contact us!

Two spacious, separate cleaning rooms in one body.

GALLERY

Highlights

  • Two separate gun washers in one body
  • two separate recirculating cleaning systems
  • shortest cleaning process with excellent results
  • efficient exhaust air system
  • automatic and manual cleaning in one body
  • pressurized air flow system protects spray guns during the automatic cleaning process
  • ergonomically designed construction allows convenient front operation
  • modular concept saves space and enables easier handling
  • overflow bund on rollers
  • for solvents, B-TEC E2C or B-TEC-H2O-Cleaners
  • all features fully adjustable
  • Option: Pneumatic exhaust solvent saver, ATEX-Version

PRODUCT ADVANTAGES

ERGONoMIc DESIGN

The ergonmical design with comfortable front access enables optimal The The ergonmic design with comfortable front access enables optimal viewing conditions on all features of the washer – without glass plates or bezels which prevent good visibility. Ergonomic and fast cleaner change due to moveable collection trays / bunds.

No laborious removing of any frames or anything similar necessary.

suitable for solvents

​Can be used with solvent and B-TEC E2C.

B-TEC H2O CLEANERS

Can be used with B-TEC-H2O-Cleaners.

STAINLESS STEEL

Bright cleaning chambers due to the utilization of stainless steel. No utilization of light absorbing plastic.

B-TEC air flow system

Opening of the spray / paint guns by a trigger clamp takes place inside the gun washer after the gun sits perfectly on the cleaning nozzle.
Of course connected to air by the help of the B-TEC air flow system.

Solvent or paint behind the air cap is prevented. No disassembling of the air cap required – less mechanical damage on the paint / spray gun and significant time savings.

ADJUSTMENT Options

​All features fully adjustable.

Kalrez Diaphragm

With the Kalrez diaphragm our pump is resistant against 1800 different chemicals. Made of corrosion-resistant material, it withstands toughest working conditions in the long term – without a maintenance
requirement.

3D View



Technical data

K-1200

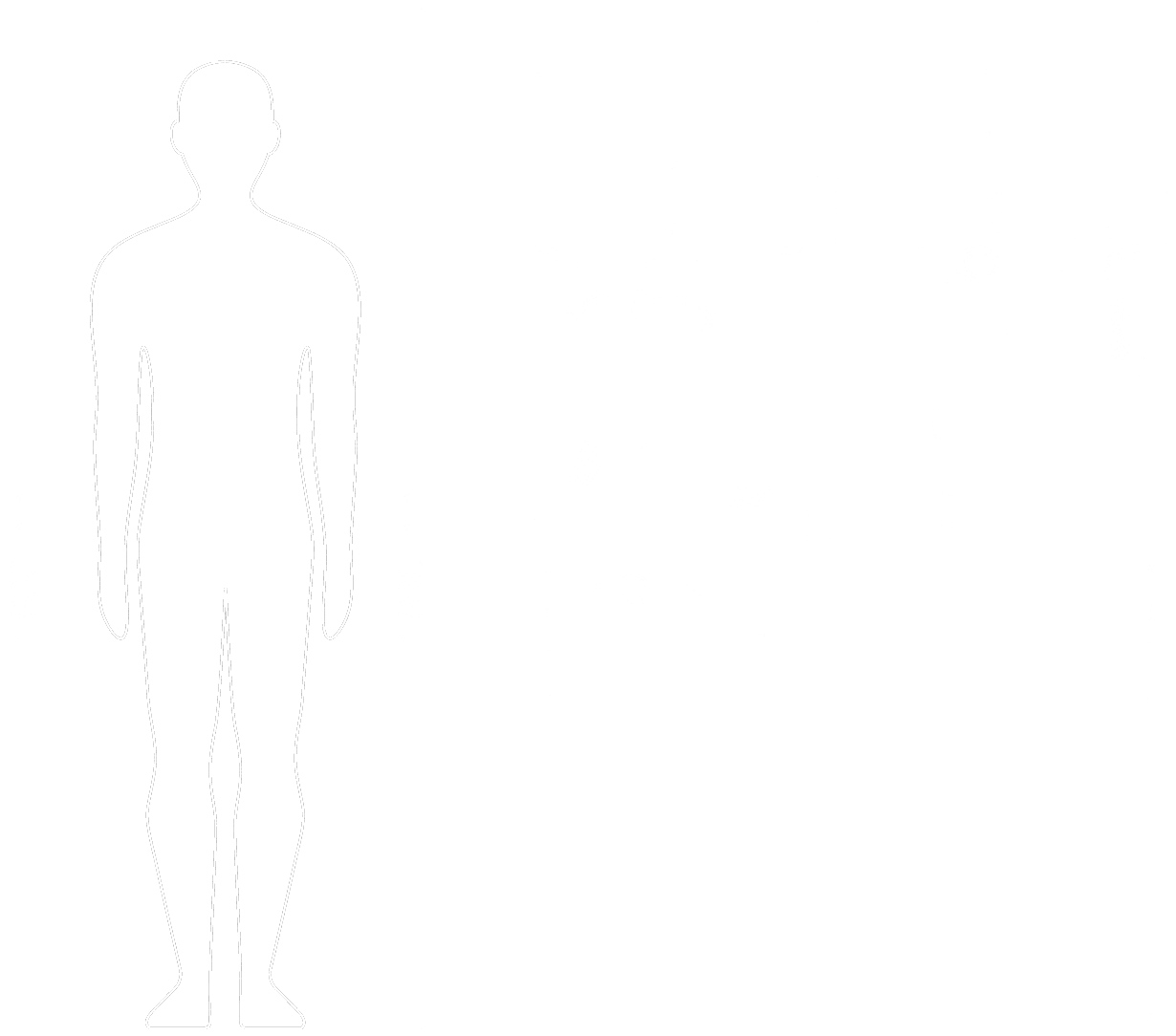

Unit dimensions
(width × height × depth)

1.210 x 1.850 x 700 mm

Cleaning area dimensions automatic section
(width × height × depth)

520 × 555 × 650 mm

Cleaning area dimensions manual section
(width × height × depth)

675 × 555 × 650 mm

Material

stainless steel

Number of paint spray guns at the same time

2

Show more
