Starter-03
Automatic spray gun cleaning, easy and well-priced
Highly economical automatic and partly manual spray gun washer.

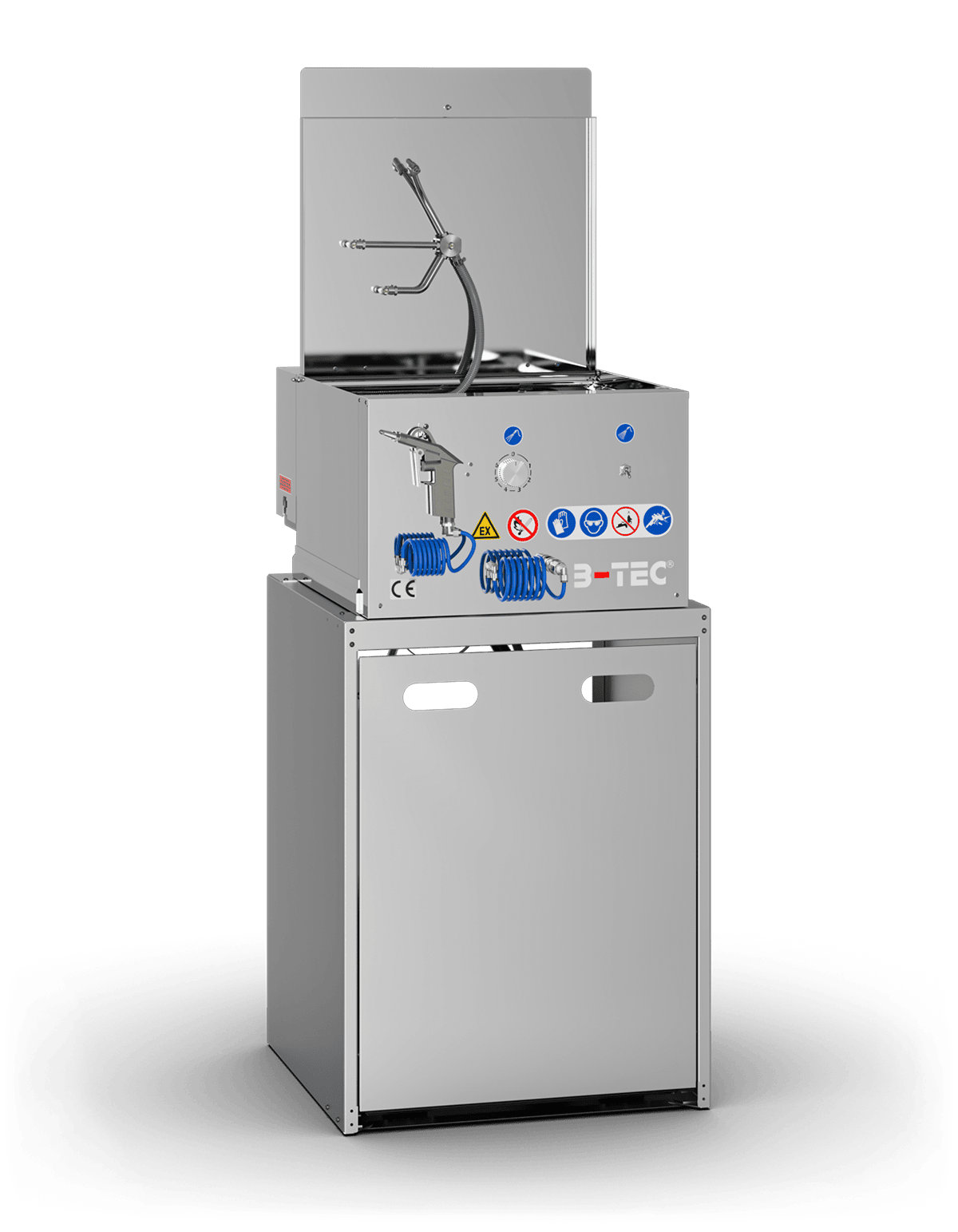

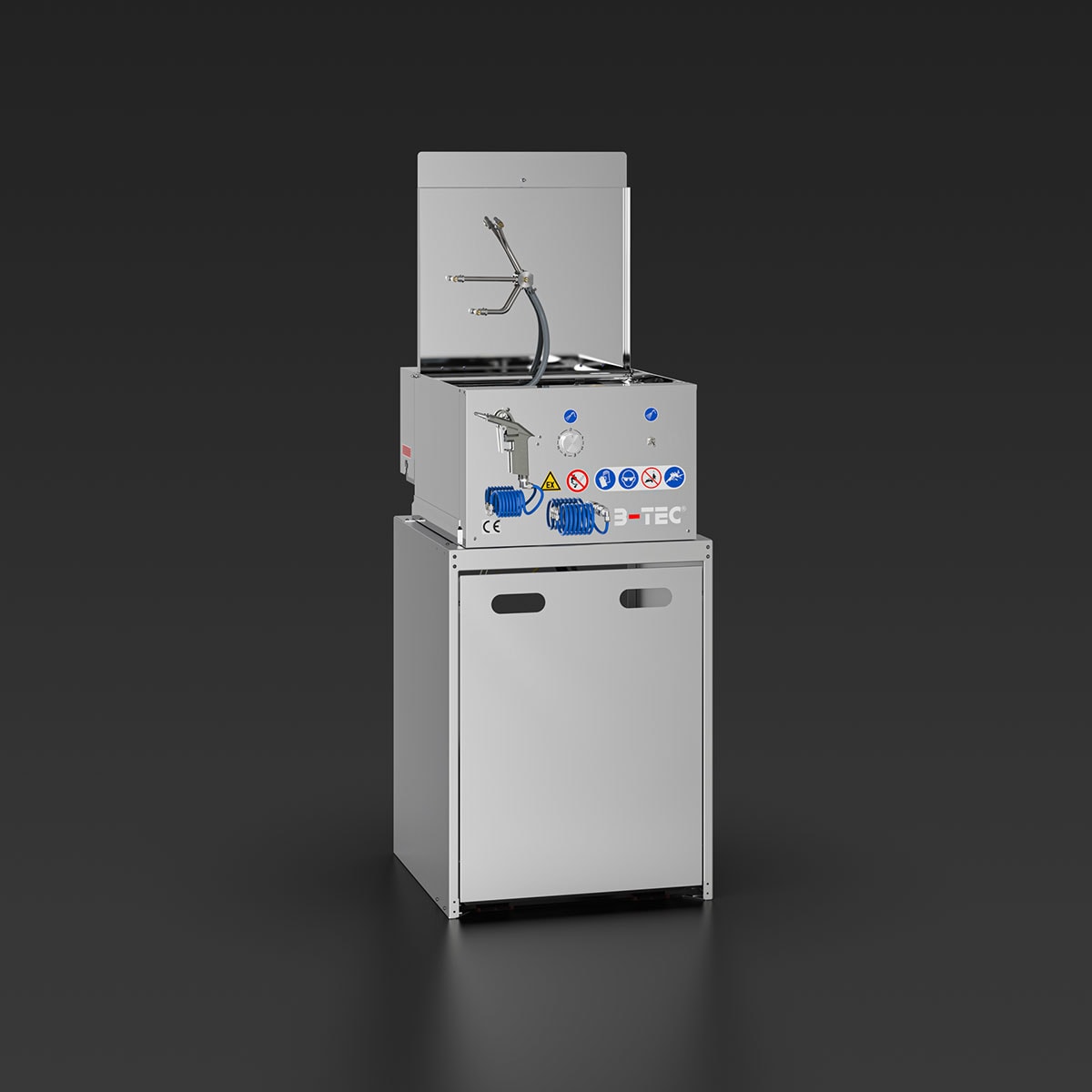

Starter-03
The Starter-03 is the ideal entry-level model into the world of automatic paint spray gun cleaning.
With our proven automatic cleaning concept including the air-flow system to protect the air channels, the time-consuming manual cleaning of the paint spray gun has finally come to an end.

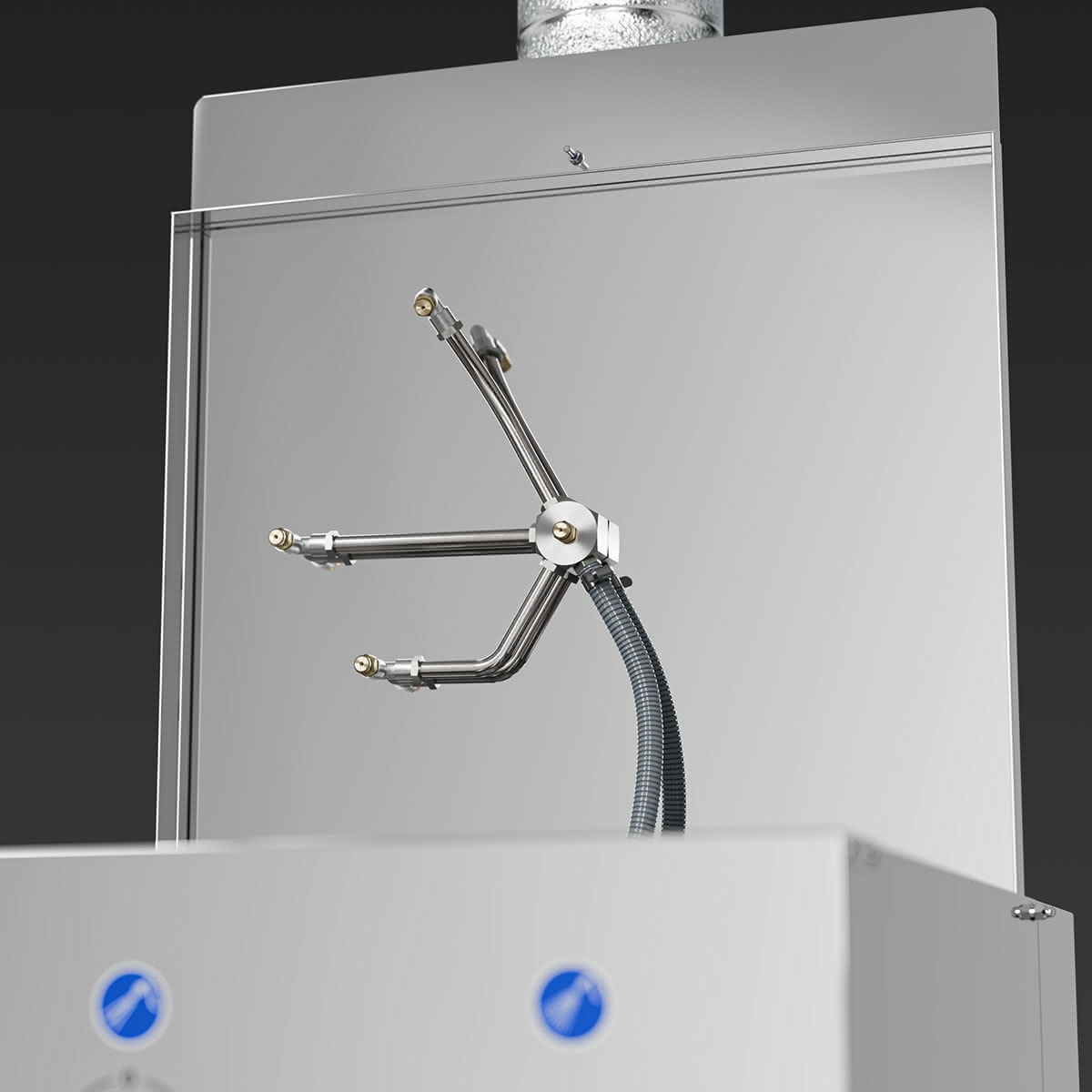

With 10 nozzles, the spray gun is cleaned 100% inside and outside in less than 3 minutes – completely without disassembling the spray gun. Contact with solvent is reduced to a minimum.
The Starter-03 is also perfectly suited as an additional washing unit to our combination units d-800 and SUMO. After all, who wants to clean their clear coat guns in the same washer as the filler guns?
Of course, B-TEC makes no compromises when it comes to quality – the material, technology and the cleaning system are exactly the same as used in other B-TEC washers, fitted to a compact body for wall mounting or optionally with a base.
The Starter series includes the three different spray gun washers Starter-01 for automatic and manual cleaning, Starter-02 for only manual cleaning with a pump-driven flow-through brush and a manual fresh rinse nozzle and the Starter-03 for automatic and manual cleaning with a loose brush and a manual fresh rinse.
For automatic cleaning

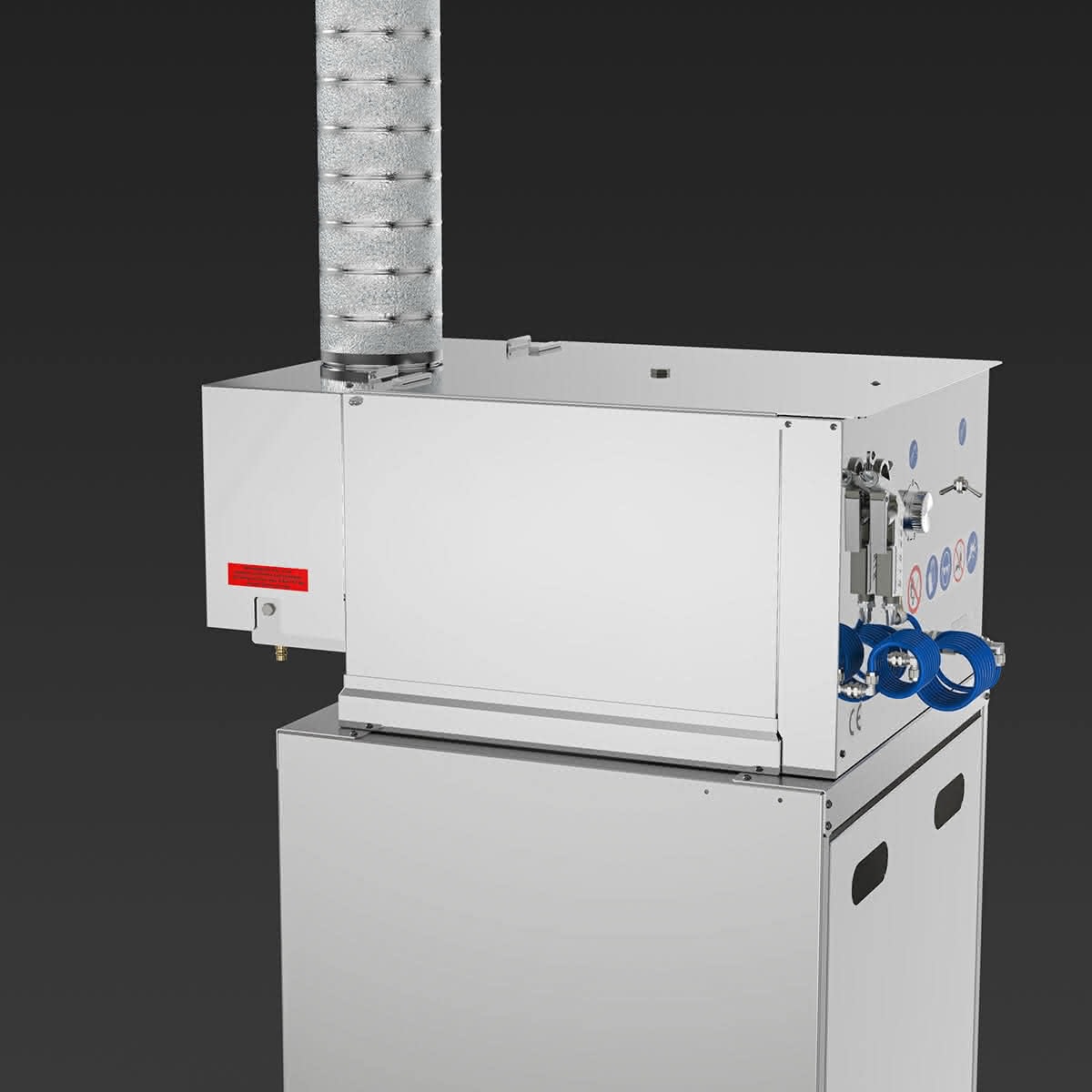

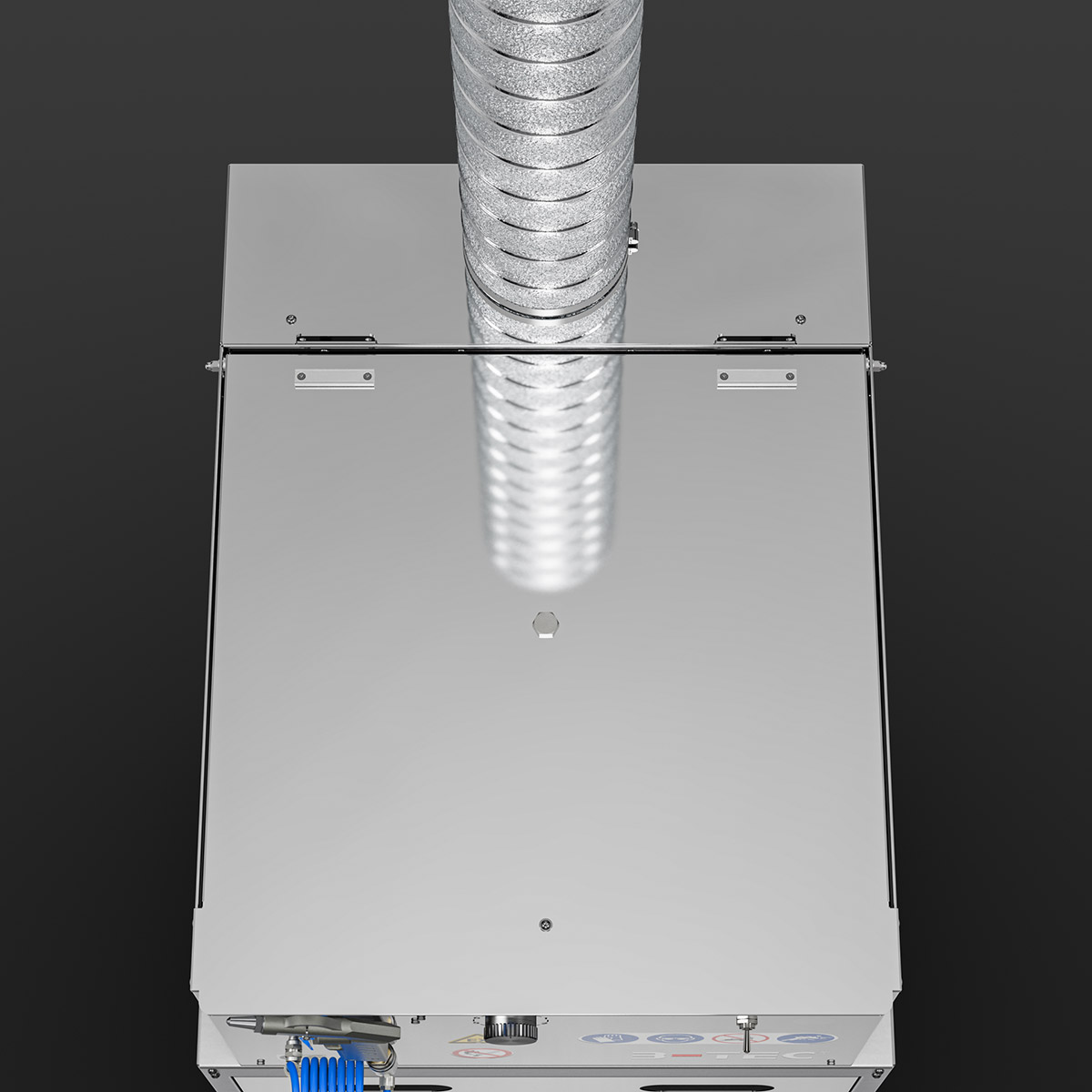

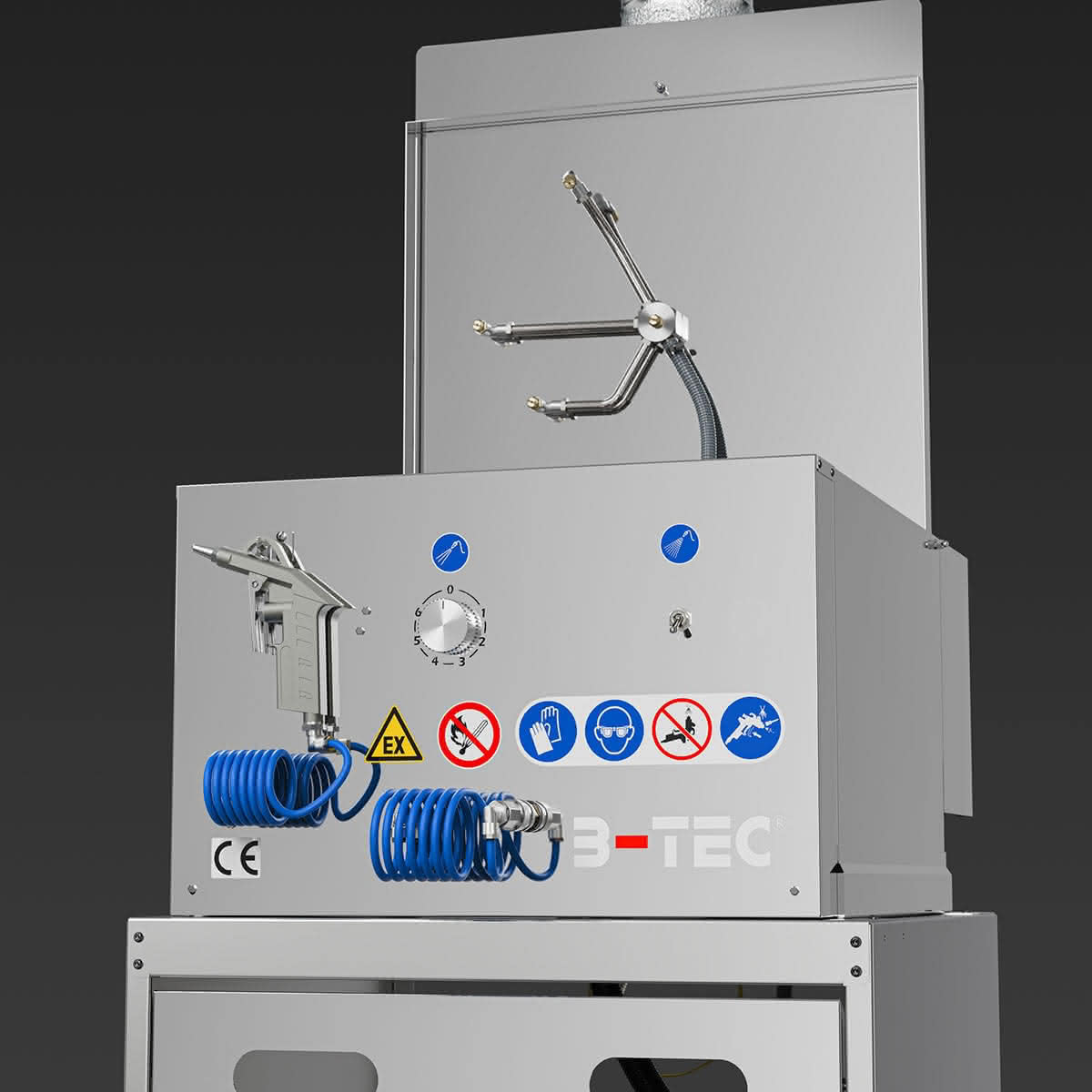

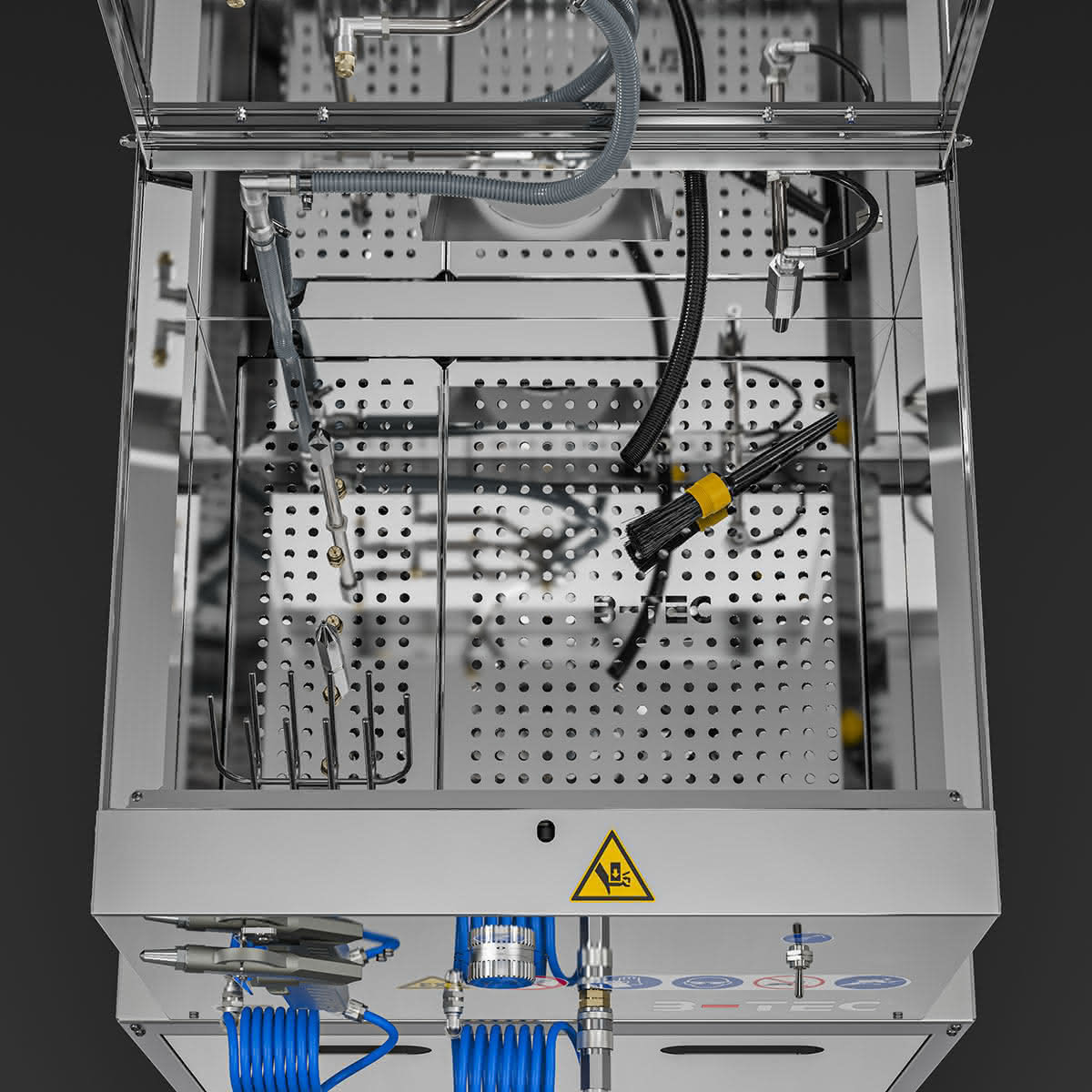

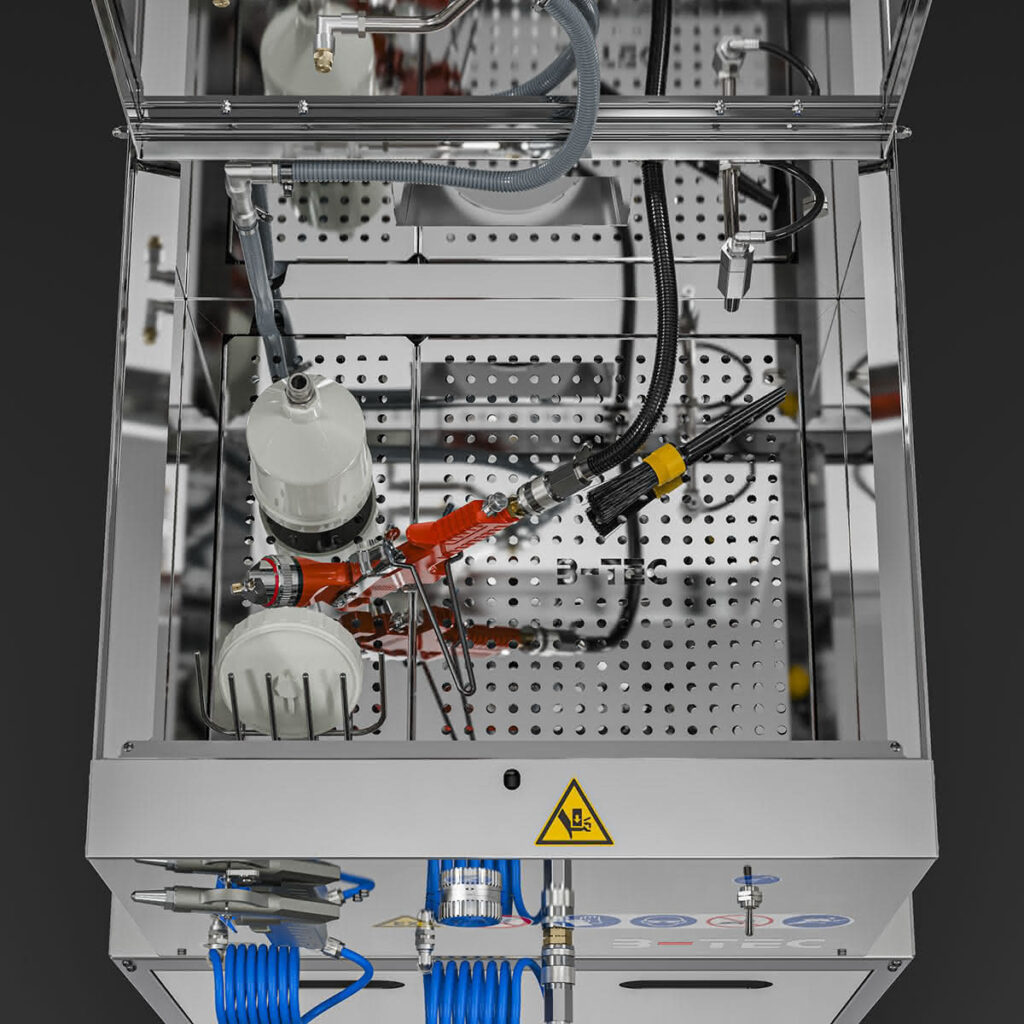

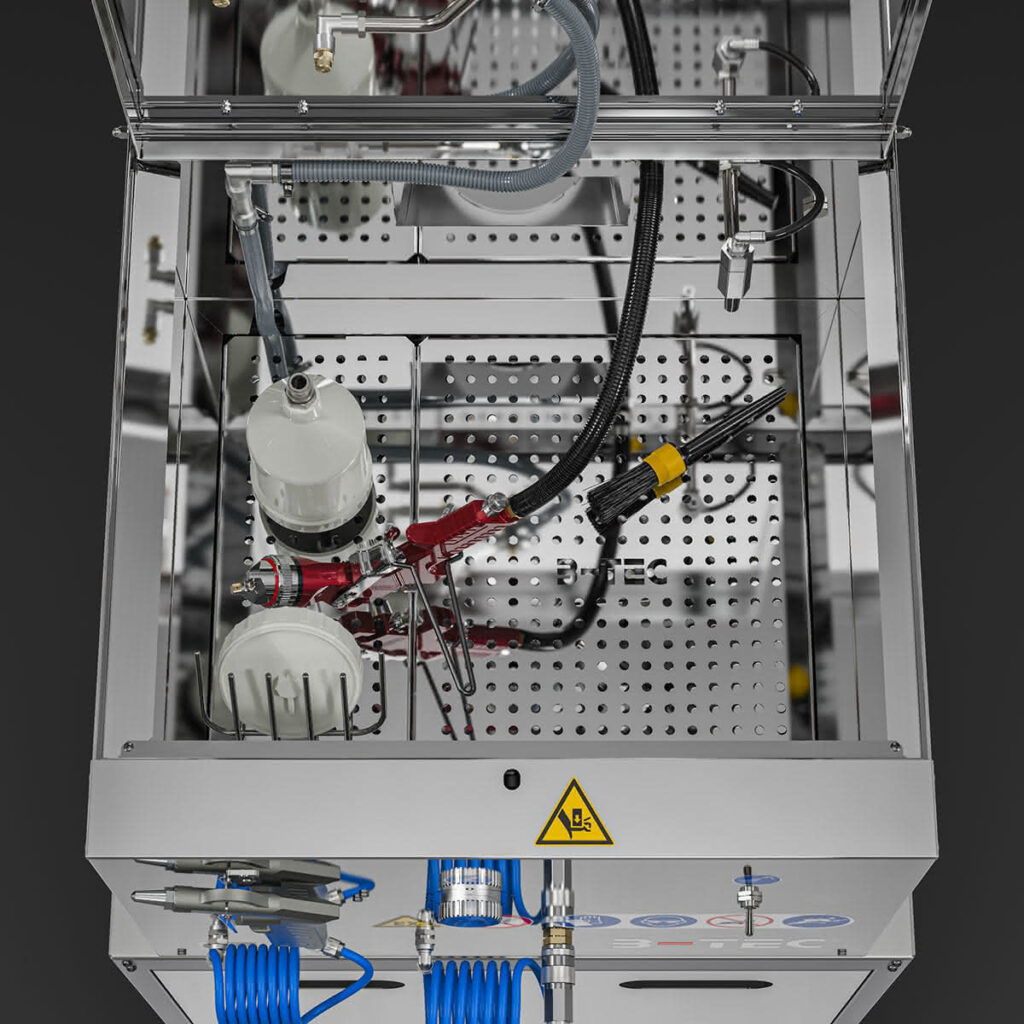

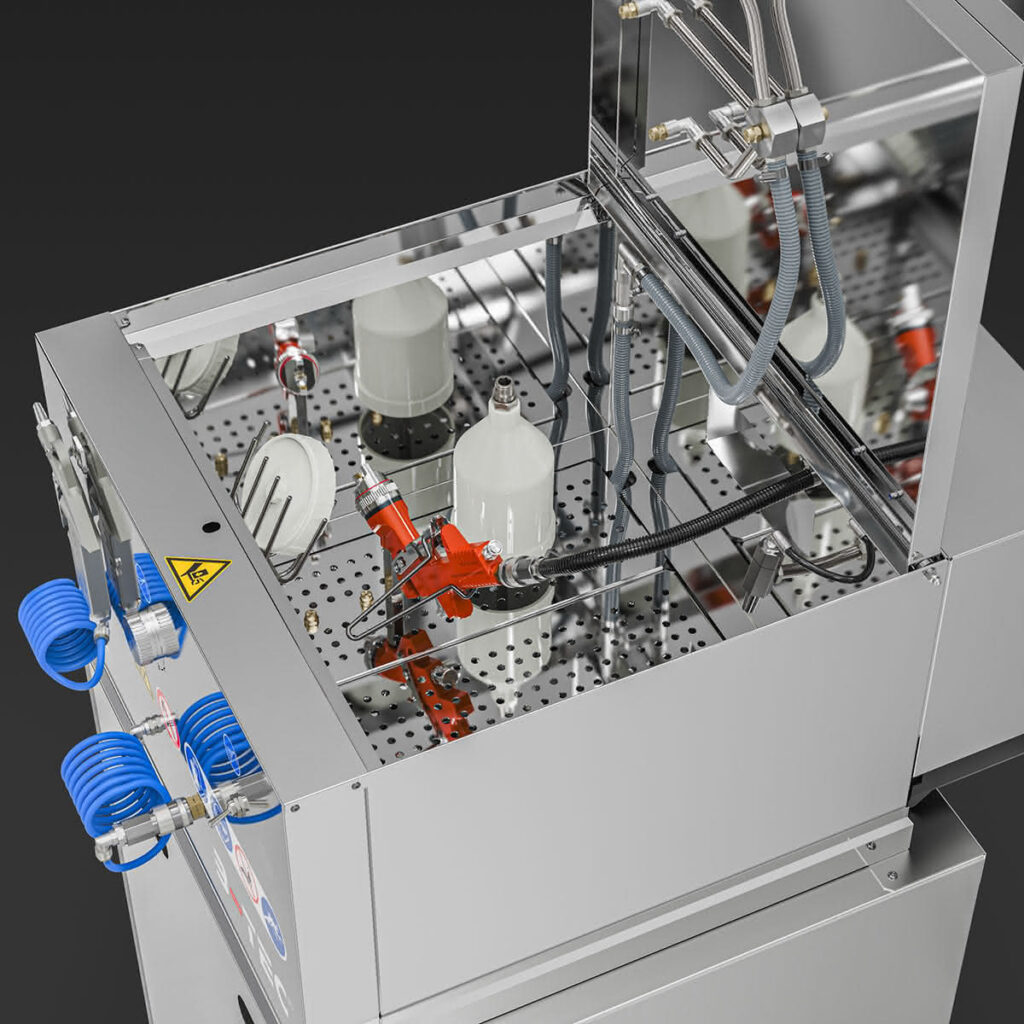

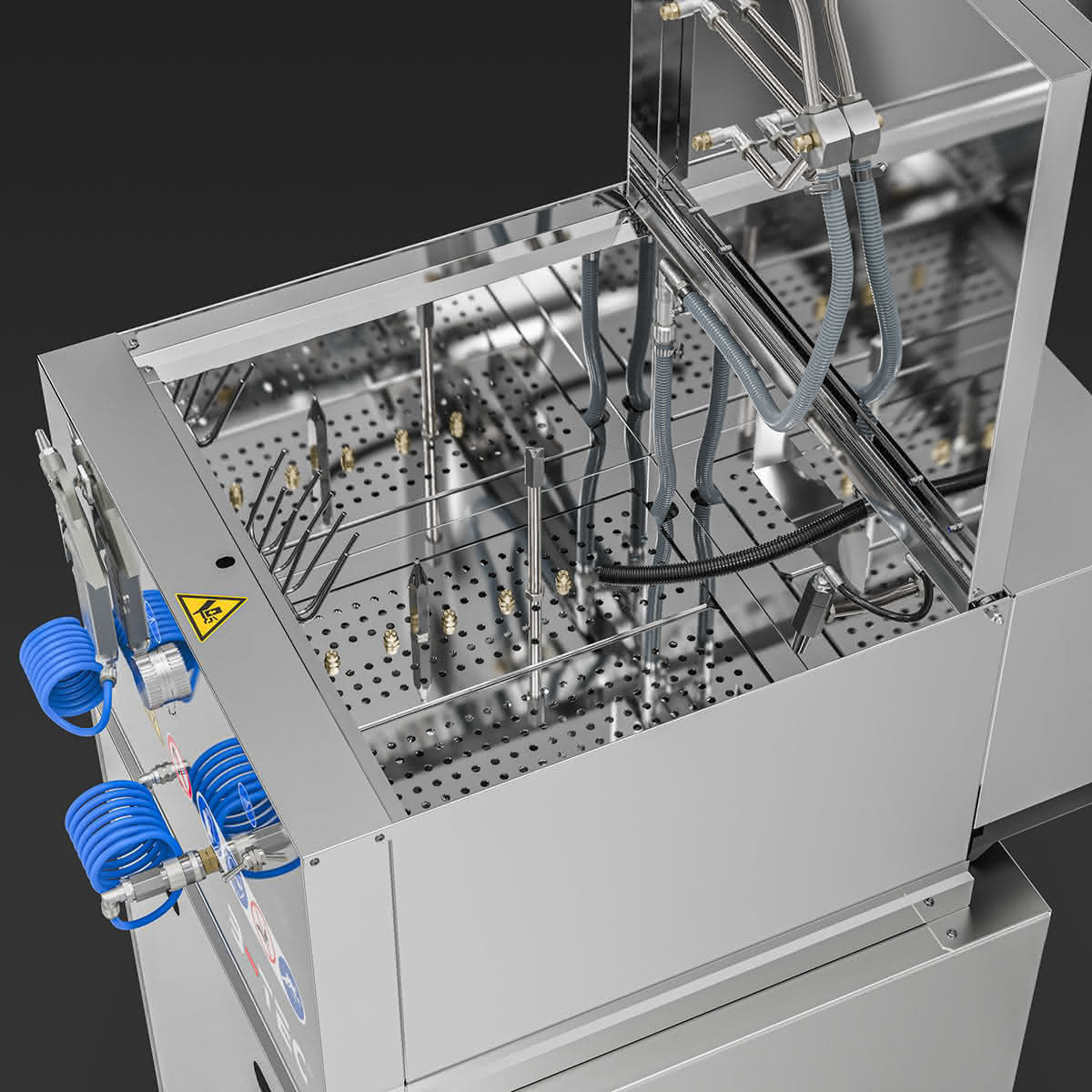

Gallery
Highlights
- Robust construction – wall installation possible
- for automatic and partly manual cleaning

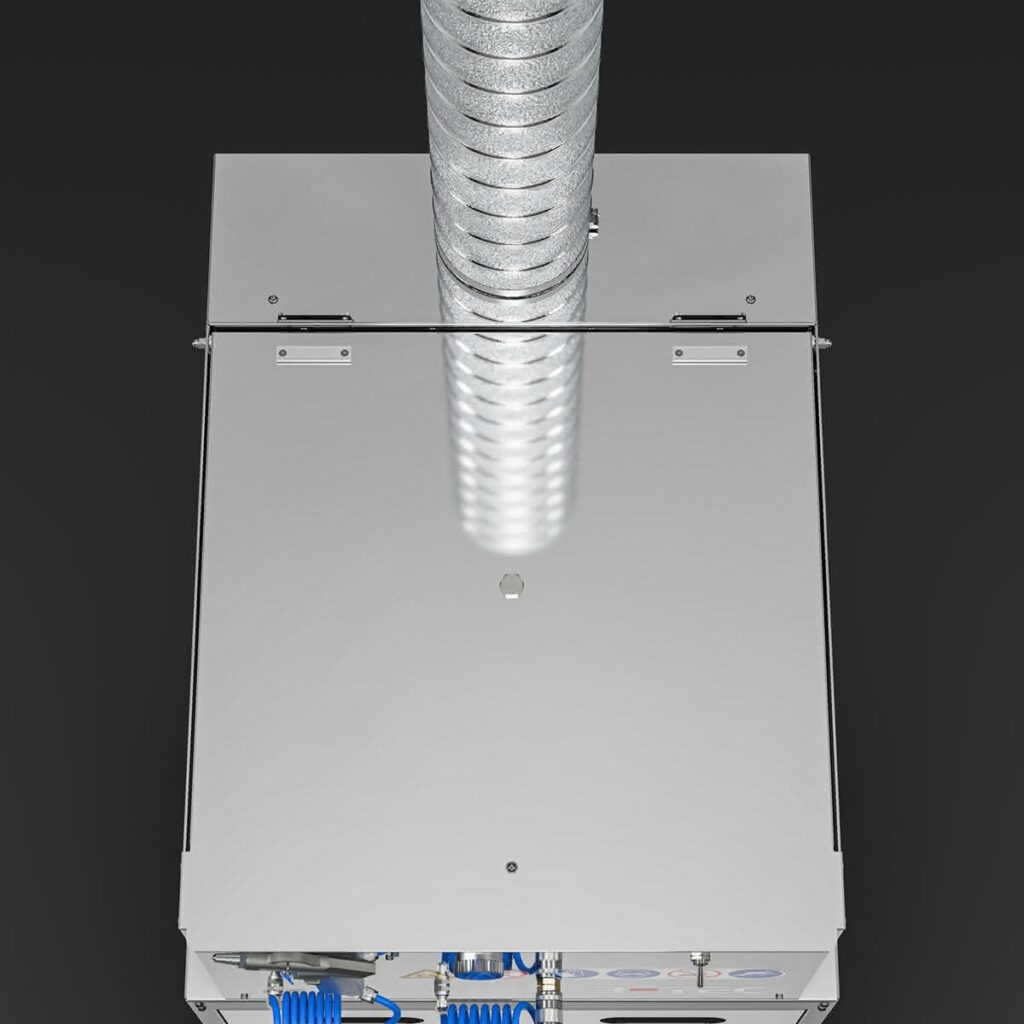

- efficient exhaust air system

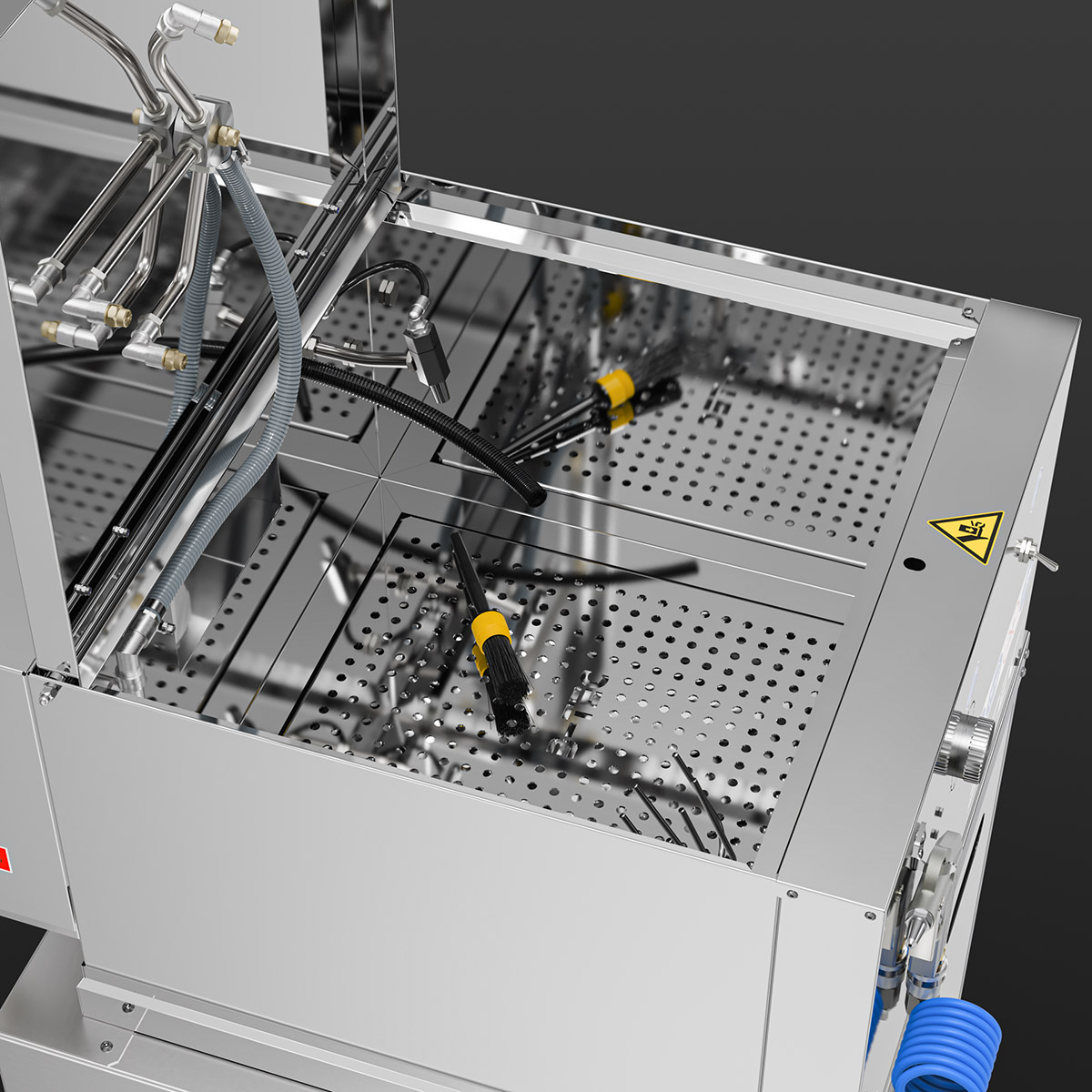

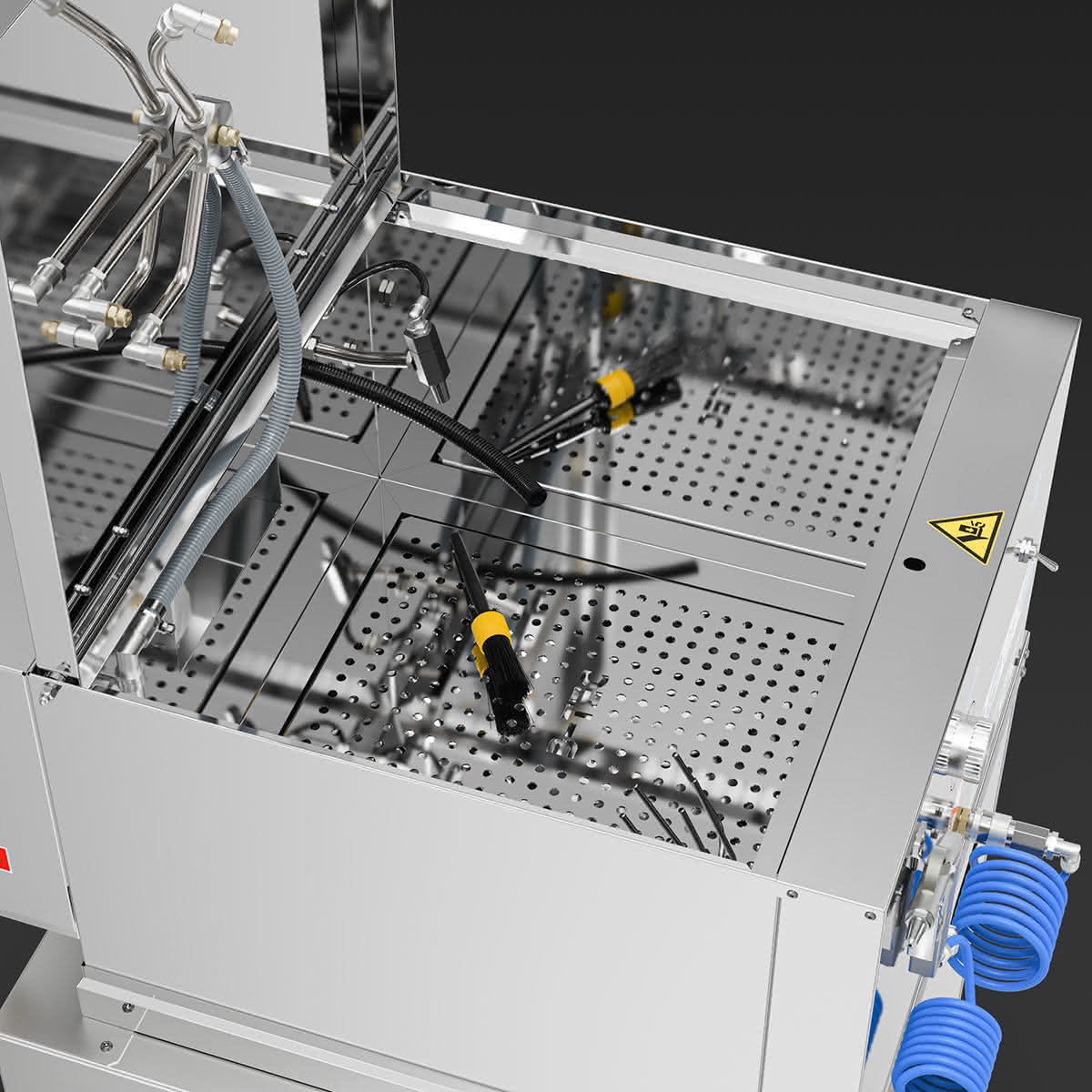

- cleaning area made of stainless steel, spray nozzles made of brass

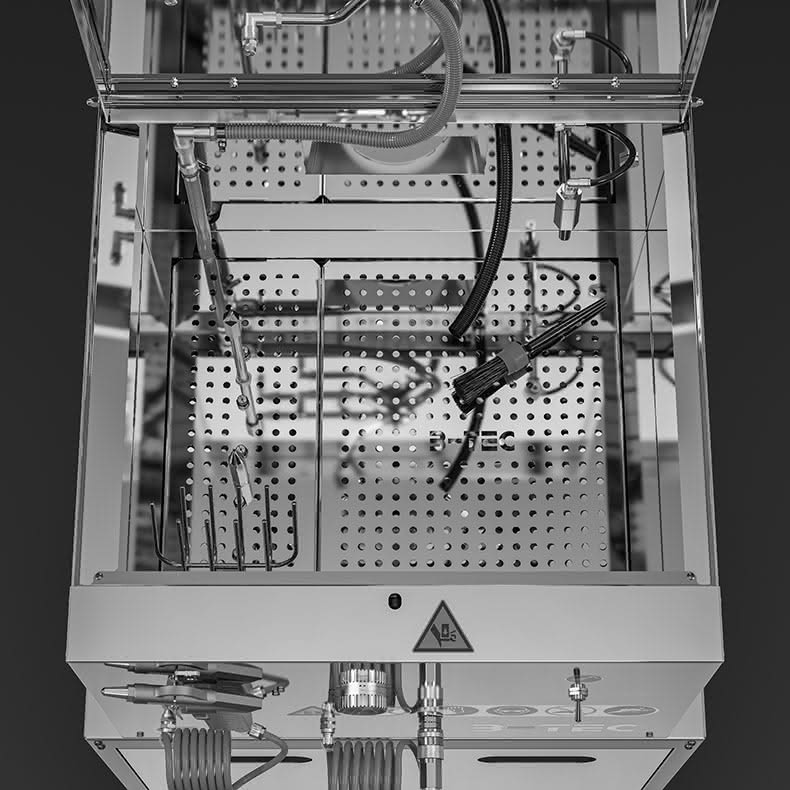

- loose brush for manual cleaning
- manual clean rinse with fresh cleaning fluid
- for solvents, B-TEC E2C or B-TEC-H2O-Cleaners
- pressurized air flow system protects spray guns during the automatic cleaning process
- Options:
- Base cabinet with door, galvanized
- Roller bund / collection tray for Starter base cabinet
- Pneumatic exhaust solvent saver, ATEX-Version
PRODUCT ADVANTAGES
suitable for solvents
Can be used with solvent and B-TEC E2C.
B-TEC H2O CLEANERS
Can be used with B-TEC-H2O-Cleaners.
STAINLESS STEEL
Bright cleaning chambers due to the utilization of stainless steel. No utilization of light absorbing plastic.
ADJUSTMENT Options
All features fully adjustable.
B-TEC air flow system
Opening of the spray / paint guns by a trigger clamp takes place inside the gun washer after the gun sits perfectly on the cleaning nozzle.
Of course connected to air by the help of the B-TEC air flow system.
Solvent or paint behind the air cap is prevented. No disassembling of the air cap required – less mechanical damage on the paint / spray gun and significant time savings.
Kalrez Diaphragm
With the Kalrez diaphragm our pump is resistant against 1800 different chemicals. Made of corrosion-resistant material, it withstands toughest working conditions in the long term – without a maintenance
requirement.
Videos
Starter-01 /-03 Unboxing and Installation
Spray Gun Cleaning
3D view
Technical data
Unit dimensions
(width × height × depth)
629 × 786 × 519 mm
Cleaning area dimensions
(width × height × depth)
454 × 275 × 366 mm
Total height with optional base and open flap
1.480 mm
Material
Cleaning area made of stainless steel, spray nozzles made of brass, optional base galvanised
Number of paint spray guns at the same time
1
